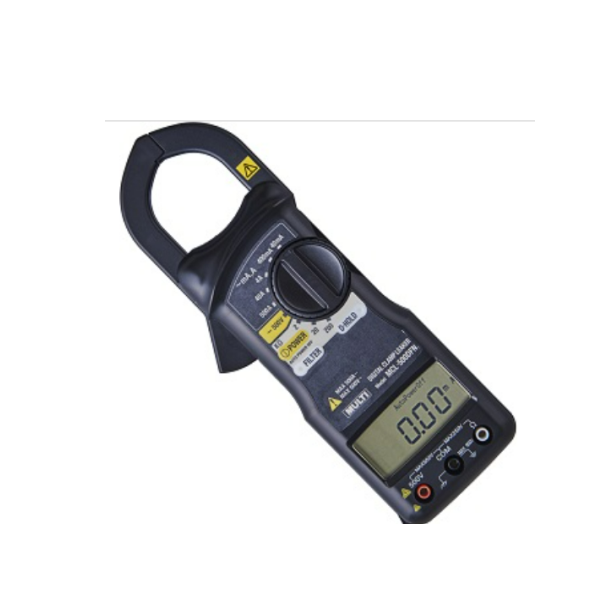

MULTI MCL-500DFN AC Current / Leakage Digital Clamp-on Tester (40mA/400mA/4A/40A/500A)

Measuring function AC current, AC voltage, Resistance

Jaw opening capability: 40mmφ

Measuring ranges:

AC 40mA/400mA/4A/40A/500A

AC 1.0～500V

Resistance: 2kΩ/20kΩ/200kΩ

Sampling rate: 2 times/sec.

Circuit voltage: less than AC/DC 600V

Operating temperature: 0～40℃, < 80%RH (without condensation)

Storage temperature: -10～60℃, < 70%RH (without condensation)

Auto power off: Approx. 10 minutes after power on

Power supply: Battery “AAA” size (1.5V) × 3

Dimension: W70×H223×D34mm

Weight: Approx. 440g

Accessories: Carrying Case, Test Lead, Batteries, Instruction Manual

Accuracy: 23℃±5℃, less than 85%RH

~A (50/60Hz)

　Range: 40mA / 400mA / 4A / 40A / 500A

　Accuracy: ±1%rdg±10dgt / ±1%rdg±10dgt / ±1%rdg±10dgt/　±1%rdg±10dgt / ±1%rdg±3%F.S

~V (50/60Hz)

　Range: 500V

　Accuracy: ±1%rdg±10dgt

Ω(OHM)

　Range: 2kΩ / 20kΩ / 200kΩ

　Accuracy: ±1%rdg±10dgt / ±1%rdg±10dgt / ±1%rdg±10dgt
