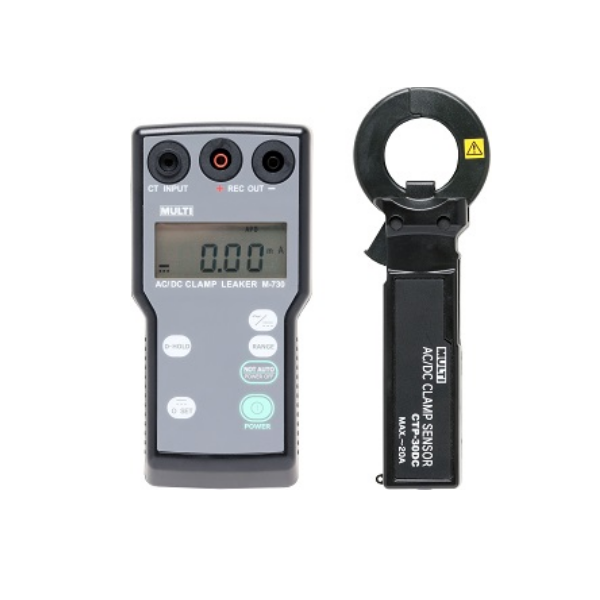

MULTI M-730 Clamp Milliammeter (DC: 100mA/1000mA, AC: 100mA/1000mA/10A)

Withstanding Voltage: AC 3700V/1 minute between CT and outer case

Storage Temperature: -10～60℃, < 70%RH (without condensation)

Accuracy:

DC Current: (Accuracy:23℃±5℃, less than 85%RH)

Range/Measuring Range/Resolution/Accuracy

100mA/0.1～±99.99mA/0.01mA/±1%rdg±10dgtt

1000mA/1～±300mA/0.1mA/±1%rdg±10dgt

1000mA/±300.1～±700mA/0.1mA/±2%rdg±10dgt

1000mA/±700.1～±999.9mA/0.1mA/±3%rdg±10dgt

AC Current (Accuracy:23℃±5℃, less than 85%RH)

Range/Measuring Range/Resolution/Accuracy

100mA/0～99.99mA/0.01mA/±2%rdg±10dgt(50/60Hz)

1000mA/0～999.9mA/0.1mA/±2%rdg±10dgt(50/60Hz)

10A/0～9.999A/0.001A/±1%rdg±10dgt(50/60Hz)

Max. input current: AC 20A

Operating Temperature: 0～50℃, < 85%RH (without condensation)

Power supply: LR6, AM-3 or AA size battery×4

Dimension: Main unit:78(W)×155(H)×32(D)mm, Approx. 280g 33(W)×170(H)×24(D)mm; CT (CTP-30DC):1.2m lead, Approx. 165g

Jaw opening capability: 30mmφ

Limitation of circuit voltage: Less than AC/DC 600V

Accessories: Carrying case, Batteries, Instruction manual

Current Consumption: Approx. 9mA (Approx. 200 hours continuous use)

Sampling rate: 1 time/sec. for DC and 6 times/sec. for AC

Measuring function: AC/DC leakage current

Measuring ranges: DC 100mA/1000mA, AC 100mA/1000mA/10A (45Hz-65Hz)
