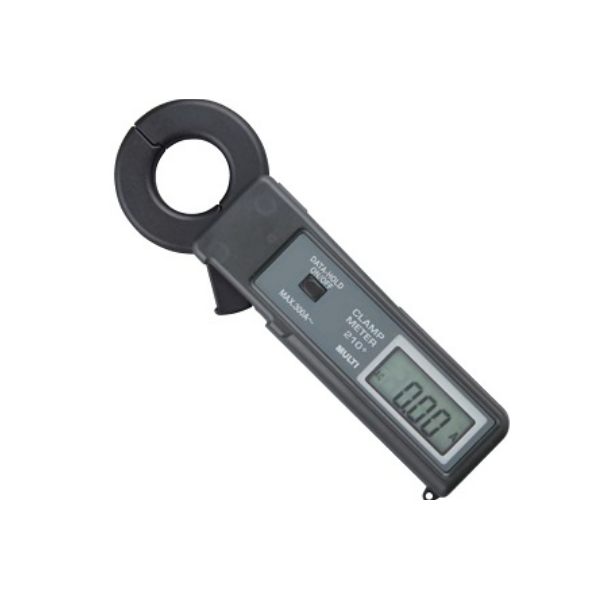

MULTI M-210+ Mini Digital Clamp Tester (30A/300A)

Display: 3.5 digit LCD, max. reading of 3200

Measuring ranges: AC 30 A/300 A

Accuracy: 23℃±5℃ 80%RH or less (50/60Hz)

Range/Resolution/Accuracy:

30 A/0.01A/±1.2％rdg±10dgt

300 A/0.1A/±1.2％rdg±10dgt

Inside diameter of CT: φ23mm

Withstanding voltage: AC 2000V/1 minute

Sampling rate: 2 times/sec

Operating temperature: 0～40℃, < 80%RH (without condensation)

Storage temperature: -10～60℃, < 70%RH (without condensation)

Power supply: 1.5V(LR-44 or SR-44) battery×2

Dimension: 48(W)×145(H)×23(D)mm

Weight: Approx. 85g

Accessories: Soft case, Batteries, Instruction manual
