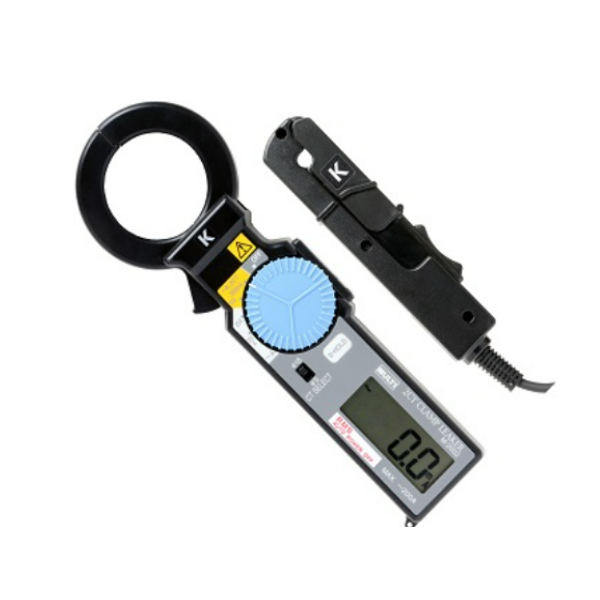

MULTI M-2002 2CT Method Mini Clamp Tester (200mA/2000mA, 20mA/200A)

Measuring ranges:

0 ～ 200mA/2000mA (Leakage current)

0 ～ 20mA/200A (Load current)

Display: LCD max. 9999 count with annunciators

Accuracy: (23℃ ±5℃ , less than 85%RH)

Function/Range/Resolution/Accuracy(50/60Hz):

2CT/AC1000mA/0.1mA/±1% rdg ± 10dgt

2CT/AC10A/0.001A/±1% rdg ± 10dgt

Main CT/AC20A/0.01A/±1% rdg ± 10dgt

Main CT/AC200A/0.1A/0 ～ 100A:±1% rdg ± 10dgt,101 ～ 150A : ± 3% rdg ± 10dgt,151 ～ 200A : ± 6% rdg ± 10dgt

Jaw opening capability:

40mm φ (Main CT)

5mm φ (Auxiliary CT)

Limitation of circuit voltage: Less than AC/DC 500V

Withstanding voltage: AC 2000V/1 minute between CT and outer case

Operating temperature: 0 ～ 40 ℃ , < 85%RH (without condensation)

Storage temperature: -10 ～ 60 ℃ < 70%RH (without condensation)

Power supply: LR03, AM-4 or AAA size Alkaline battery×3

Size:

64(W)×195(H)×24(D)mm(Main CT)

25(W)×114(H)×19(D)mm(Auxiliary CT)

Weight: Approx.190g
