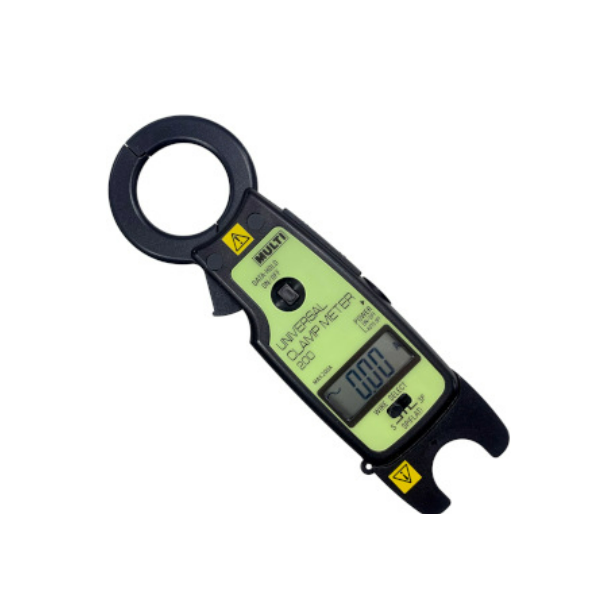

MULTI M-200 Universal Clamp Tester (20A/200A)

Display: 3.5 digit LCD, max. reading of 1999

Jaw opening capability: 33mmφ

Sampling: 2 times/sec

Withstanding Voltage: AC 2200V 1 minute max.

Operating Temperature: 0℃ to 40℃, 80%RH max. ( Without condensation )

Storage Temperature: -10℃ to 60℃, 70%RH max. ( Without condensation )

Power supply: 1.55V (SR-44, LR-44)×2

Power consumption: 2.5mW

Battery life: SR-44 (200 hours), LR-44 (100 hours)

Size: 54(W)×170(H)×21(D)mm

Weight: Approx. 100g

33mmφCT

Range: AC 0～20A/200A

Accuracy: 23℃±5℃ 80%RH or less (50/60Hz)

Range/Resolution/Accuracy:

AC 20A/10mA/±1.2% rdg ± 5 dgt

AC 200A/100mA/±1.2% rdg ± 5 dgt

U type CT

Range: AC 200A

Accuracy: 23℃±5℃ 80%RH or less (50/60Hz)

Max.size of conductor: 20mmφ

Manual
