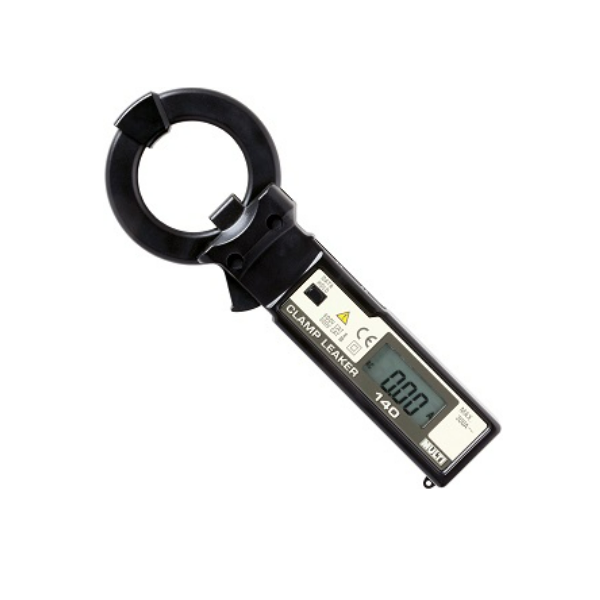

MULTI M-140 Mini AC Leakage Current Clamp Tester (30mA/300mA, 30A/300A)

Range: AC 0～30mA/300mA, 30A/300A, 2 range manual

Accuracy: 23℃±5℃ 80%RH or less (50/60Hz)

AC 30/300mA/0.01mA/±1.2% rdg ± 5dgt

AC 30/300A/0.01A/0～200A : ±1.2% rdg ± 5dgt

200～250A : ±3.0% rdg ± 5dgt

250～300A : ±5.0% rdg ± 5dgt

Jaw opening capability: 40mmφ

Display: 3.5 digit LCD, max. reading of 3200

Operating Temperature: 0℃ to 40℃, 80%RH max. ( Without condensation )

Storage Temperature: -10℃ to 60℃, 70%RH max. (Without condensation )

Auto power off: Approx. 10 minutes later after power on

Power supply: 1.55V (SR-44, LR-44)×2

Battery life: Approx. 50 hours(LR-44)

Power consumption: 5mW

Withstanding Voltage: AC 3700V 1 minute max

Size: 64(W)×162(H)×23(D)mm

Weight: Approx. 125g

Sampling:

2 times/sec (Digital display)

12 times/sec (Bar graph display)

Accessories:

Soft case:1

Instruction manual:1

Batteries LR-44(1.55V):2
