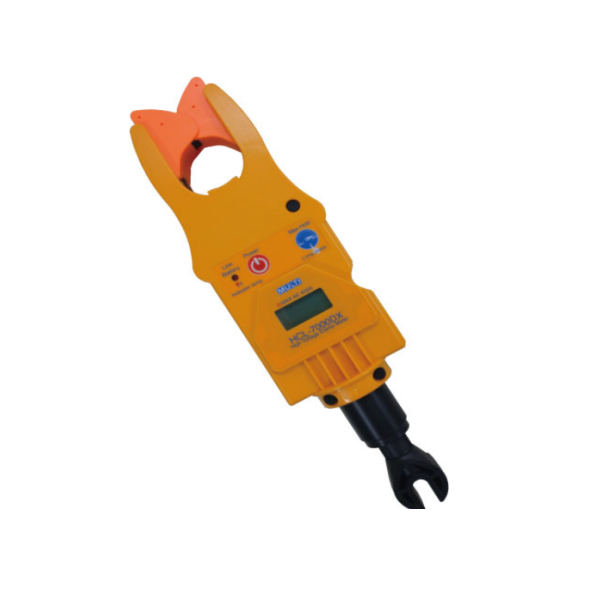

MULTI HCL-7000DX-M AC High Voltage Clamp Meter (20A/ 200A/ 600A)

Measuring function: AC load current

CT shape: Round shape

CT Inside diameter: 35mm

Measuring range: 20A/ 200A/ 600A (Auto)

Accuracy:

20A/200A range: ±2.5%rdg ±8dgt

600A range: ±2.5%rdg ±8dgt in 200A ～ 399A

±3.0%rdg ±8dgt in

400A ～ 600A

Resolution:

20A range: 0.01A

200A range: 0.1A

600A range: 1A

Applicable frequency: 50~60Hz

Withstanding voltage: AC 24kV

Operating temp & humidity range: 0℃～40℃, 80%RH or less

Storage temp & humidity range: -10℃～60℃, 80%RH or less

Power supply: AAA(LR03) size battery×3

Dimension / Weight: W66×H215.4×D55mm (Not including the universal joint); Approx 400g (including battery weight)
