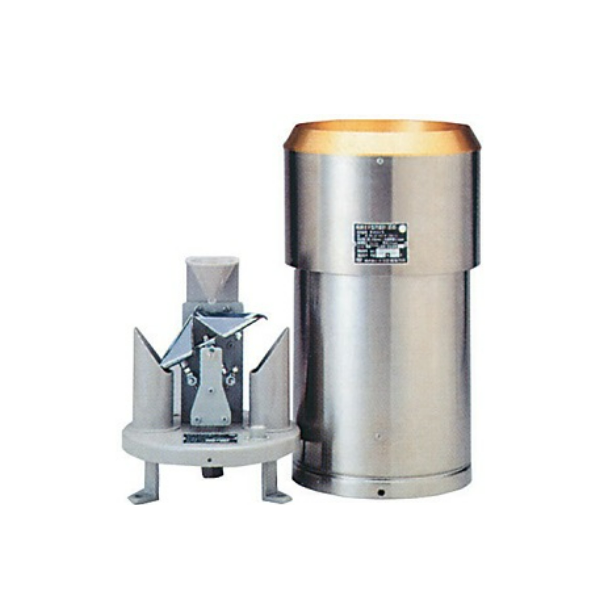

MULTI 34HT-BP Tipping Bucket Type Rain Gauge (φ200mm±0.6)
ManufacturerMULTI(View more products from this manufacturer)
Model34HT-BP
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Water Receiving Aperture: φ200mm±0.6
Sensitivity: 1 turn rainfall 0.5mm (0.1/0.2/0.25mm)
Measuring Accuracy:
Less than 20mm/h:±0.5mm
More than 20mm/h: ±3%
Surface Coating: Chrome plating
Output Signal: A-contact output by reed switch (DC 30V/0.2A or pulse output)
Heater: Reacting at the temperature leass than setting value by 10℃ (Heater power-on).
Power Supply:
DC24V ～30V
Heater: AC100V (upper & bottom part)
Dimension: φ226.6mm×H450
Weight: 5.0kg
Accesory: 0.5mm₂×2CVCFT×10m
