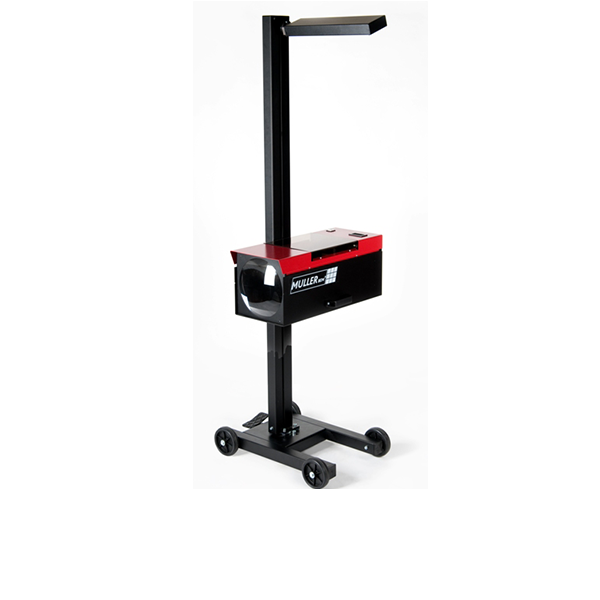

MULLER 764-8 Headlight tester (125kcd, touch LCD display, includes rail, measuring wheel, halogen, LED, and Xenon lamps)

Device function: CCD camera technology headlight tester, capable of measuring new types of headlights such as Xenon, Halogen, and LED

Display: Large color touchscreen LCD

Computer connectivity: Via LAN or Wi-Fi for data storage and printing

Horizontal movement: On rails or by wheels on a flat surface

Tool for adjusting relative position to the vehicle: Laser-assisted

Tool for aligning the measurement chamber with the headlight: Electronic

Vertical deviation measurement range (Up/Down): +6% to -6%

Horizontal deviation measurement range (Left/Right): +10% to -10%

Accuracy: < 0.1%

Luminance measurement range: 0 – 125 kcd

Accuracy (luminance): 10%

Power supply: Battery or via power adapter

Dimensions: 590 × 670 × 1890 mm

Weight: 25 kg
