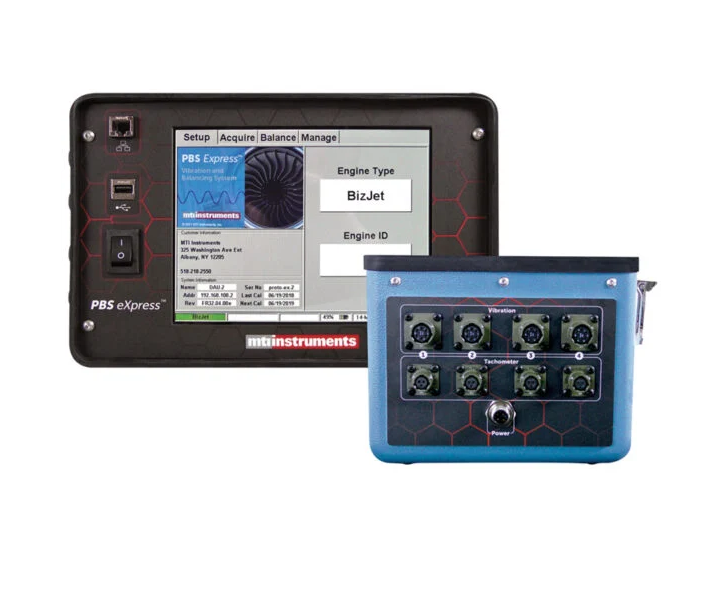

MTI instrument PBS eXpress Vibration Measurement and Engine Rotor Balancing

BALANCING CAPABILITIES:

User Selectable: One Shot (stored influence coefficient); Trial Weight (baseline run and trial weight run)

Speeds: 1-20 speeds simultaneously (configurable speed points)

Channels: 1 to 4 channels simultaneously

Planes: 1 or 2 balance planes simultaneously

Weights: Up to 20 standard weight classes, user configurable

Types: Transient Balancing and Fixed Speed Point

SPEED:

Input Channels: 2 standard, up to 4 optional

Input Voltage Range: 200V Pk-Pk

Speed Range: 150 to 75,000 RPM

Speed Accuracy: Better than 0.02%

Phase Accuracy: 1° typical

Types: Any 1/REV or embedded odd-tooth type signal (N/REV) (including short/long/offset tooth, optical, and tach ratio types)

VIBRATION:

Input Channels: 2 standard, up to 4 optional

Input Voltage Range: 20V Pk-Pk

Frequency Range: 5 to 30 kHz

Tracked Amplitude Accuracy: Better than +/- 1%

Tracked Components: N1, N2, N3 + up to 4 customizable tracked orders

ADDITIONAL SPECIFICATIONS:

Connectors: Industry compatible MS-type cannon plugs, universally compatible.

Through-put: 4 spectra/sec

Power: Li-Ion Battery, up to 5 hr run time, 2.5 hr charge time. Able to operate while charging

Display: 8.4” Color TFT display with Capacitive Touchscreen

Operating Temperature: 0-50°C operation (battery charging stops at 45°C)

Dimensions: 11.5″w x 7″d x 7″h (29.2 cm x 17.78 cm x 17.78 cm)

Weight: 9.8 lbs (4.45 kg)
