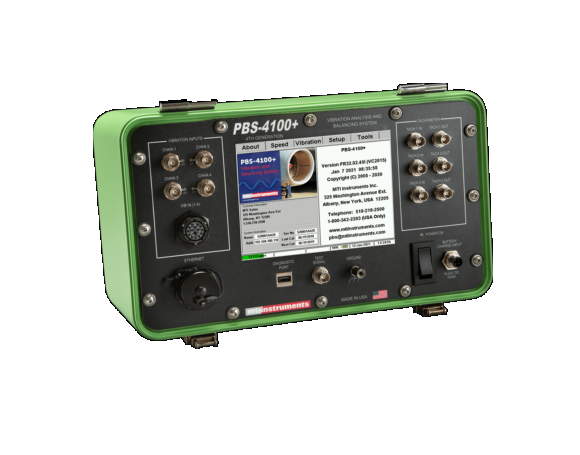

MTI instrument PBS-4100+ Gen4 Portable Vibration and Balancing System

Laptop Computer

- Panasonic Toughbook CF-33 (2 in 1 PC)

Data Acquisition Unit (DAU)

- Power: Internal Li-Ion battery pack + AC Adapter

- Battery Life: 4 hrs (typical)

- Weight: 14.4 lbs (6.5 kg)

- Dimensions: 10 x 8 x 14  in (25.4 x 20.4 x 35.6 cm)

- Durability: 4 ft drop on any side

Vibration Measurement

-   4 Input Channels

-   0 to ±10 Volts Peak

-   5 Hz to 25 kHz

Speed Measurement

- 3 Input Channels

- 1/REV, N/REV, and Odd-Tooth types (long, short, offset)

- 100 mV to 200 Volts Peak-Peak

- 150 to 100,000 RPM

Balancing

- One Shot (stored influence coefficient) or Trial Weight

- Up to 20 speeds, 4 channels, and 2 planes simultaneously

- Included Software

- 150 to 100,000 RPM
