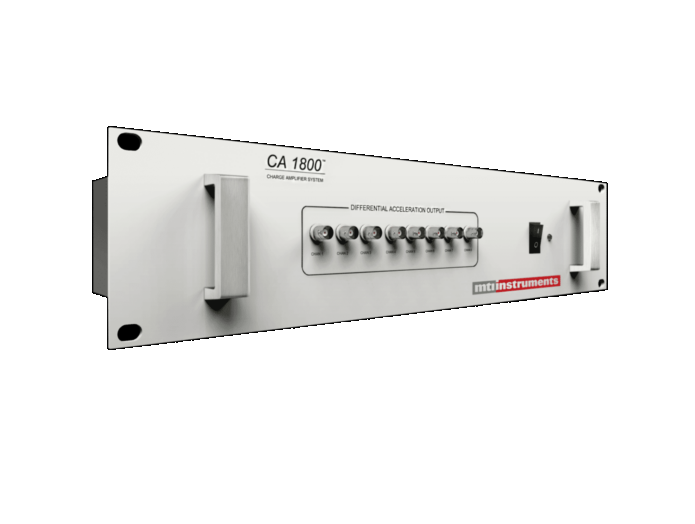

MTI instrument CA1800 Rack-mount Multiple Channel Charge Amplifier

INPUTS:

Differenal Input:  Stac discharge protected

Input Connecon : Differenal with shield connected to case, MS3101E-10SL-3P

Input Impedance : 10Ω maximum

Maximum Input Charge : 20,000 pC pk, maximum

Velocity Output Rear:  Panel BNC female connector

Acceleraon Output (buffered) : Front Panel BNC female connector

Output Impedance 1: 0Ω maximum

Capacitance Load : 0.1μF maximum

DC Output Bias:  0 Vdc

Linear Output Voltage : 17Vpk-pk max

Output Current : 25 mA maximum

Linearity : 0.02

Residual Noise (RTD) : 1.0 mV RMS maximum at gain =1, 4.0 mV RMS max at gain = 10

CONFIGURATION OPTIONS:

Number of Channels:  4, 6, 8

Channel Gain Sengs:  1, 4, 10 mV/pC

High-pass Filter Opons:  10, 15, 20, 25 Hz

Outputs (ACC & VEL):  Differenal or Single Ended

POWER REQUIREMENTS

AC Power Requirements  110/240 VAC ±15% 50 - 400 Hz

Warm-up Time  5 minutes

PHYSICAL CHARACTERISTICS

Dimensions  3.5” h X 19” w X 13” d

Weight  11.7 lbs
