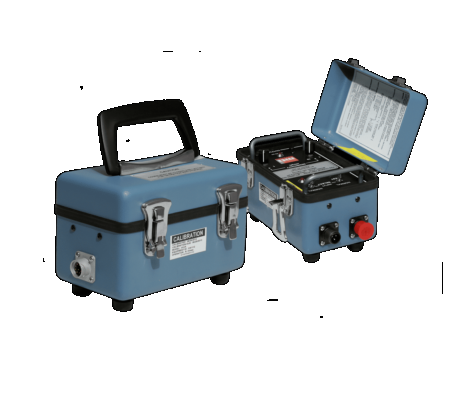

MTI instrument 41CA Dual Channel Rugged Charge Amplifier (2CH; 5-10,000 Hz)

Number of Channels : 2

Sensitivity Switch settings:  1, 4, or 10 mVolts/picocoulomb individually settable for each channel

Input : Full differential

Frequency Range:  5-10,000 Hz

Output : Velocity

Dimensions : 4 x 7 x 4 inches (10 x 18 x 10 cm)

Test Mode Signal: 61.4 Hz test signal equal to 50% of FS output

Weight : 3.5 lb (1.6 kg) max.

Cable:  Many types available upon request

Temperature / humidity:  -7°C to 55°C (20°F to 131°F), 5-95% RH
