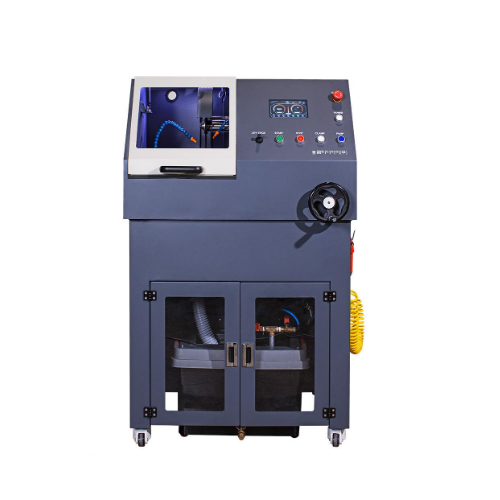

MTDI KANTA-100F High-speed Cutter (500 ~ 3,500rpm)

Type: Rotary Handle type

Dimension (WxDxH): 90mm x 1,015mm x 1,490mm

Power: AC 220V, 3 phase, 60Hz, 3.1 kW

Moter: SIEMENS Waterproof Motor 2.2kW (3HP)

Wheel Size: 10", 12"(Arbor 32mm)

RPM: 500 ~ 3,500rpm

Cut Capacity: Plate (DxH): 80mm x 60mm, Round: Ø80(12” Wheel)

Safety: Cover open sensor, E-stop

Advantage:

Convenient auto clamp vice(Pneumatic) for precise fix the specimen

7” TFT LCD Touch Screen for Easy control

Set Cutting speed, Acceleration, Deceleration, Cutting load available

Top/Front window for see-through inside

Control cutting speed automatically by sense the load during the auto cutting

Wheel spin speed control by Touch screen control

Easy Stage move by Joystick

Controls:

Power, Start, Stop, Pump

Light on/off
