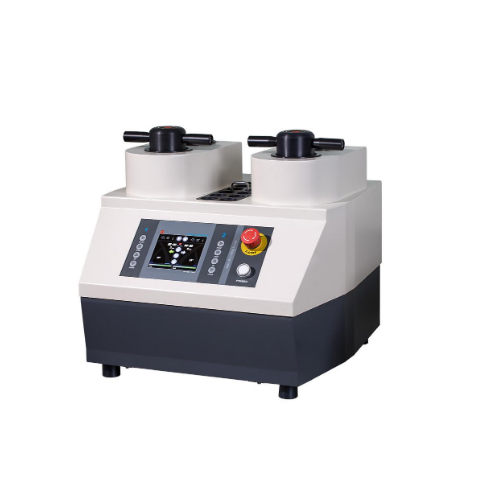

MTDI ETOS-200 Mounting Press (25 ~ 50mm, Dual Mold)

Usage: Automatic Hot Mounting Press

Dimension(WxDxH) (mm): 560㎜x 560㎜x 530㎜

Power: 220VAC, Single Phase, 3.5kW

Mold Size: 25 ~ 50mm Dia. , User Selection(40, 50 Option)

Input Type: Auto Hydraulic, Pump(Max 3,000psi/210Bar)

Cooling: Auto Cooling(Water) with Solenoid valve / Fan Cooling(Air)

Temperature: Max 220℃ (Limit 210℃)

Safety: E-stop button

Advantage:

Integrated design of Cylinder and Heat for quick mounting

Buttons: Power, E-stop, Start, Stop, Up, Down

Prevent fall down of Mold Cap for safety use

Specimen Cradle (Option) for specimen storage

Emergency Stop button block the power immediately

Set Limit available of Temperature and Pressure

Prevent Noise and increase Hydraulic Cylinder and Hydraulic Pump by Accumulator

5.6” TFT LCD Touch Screen for easy control and check status

Controls: Power, Start, Stop, Cylinder control
