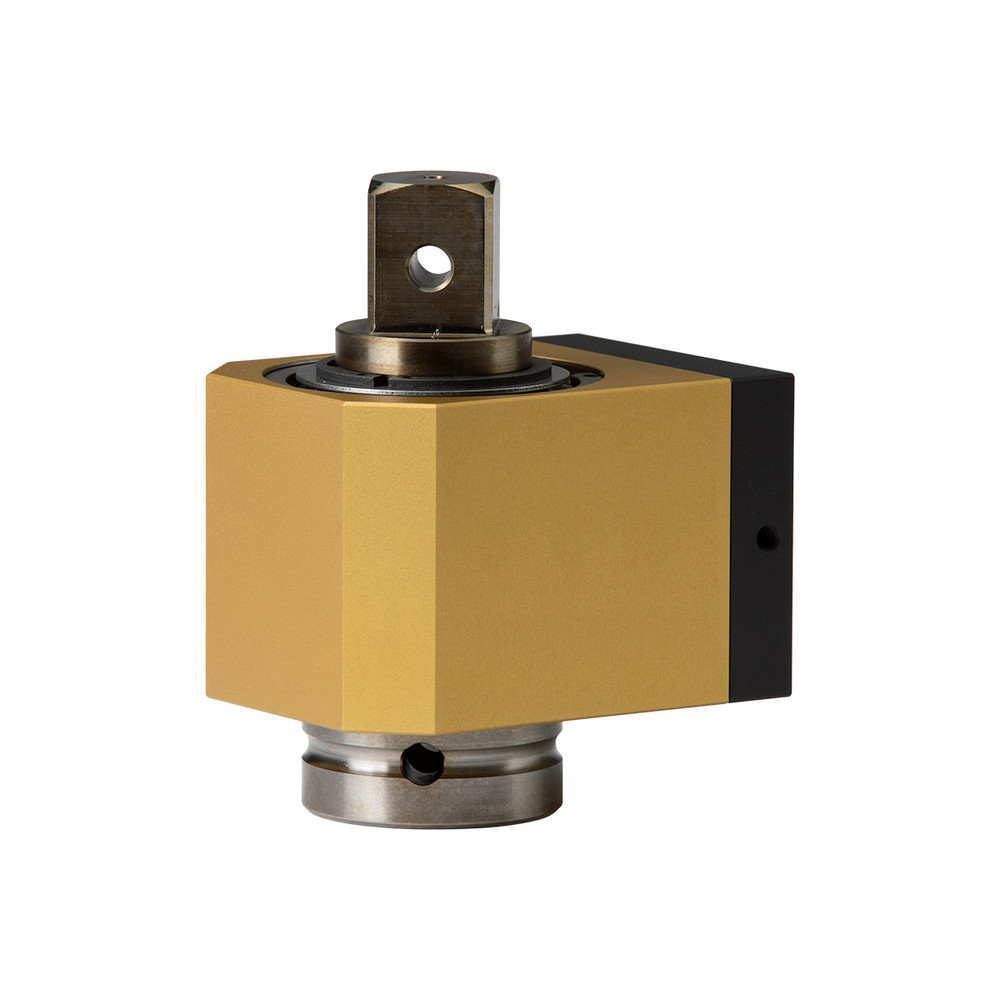

Mountz RTSX738F (170211) RTSX Rotary Torque Sensor (100 - 1000 N.m; 1 Male/Square)

Input Driver type: 1 Female/Square
Output Driver type: 1 Male/Square
Torque range : 74 - 738 lbf.ft / 100 - 1000 N.m
Output at Rated Capacity: </= 6 Nm [53 lbf.in] rated torque 1 mV/V > 6 Nm [53 lbf.in] rated torque 2 mV/V
Interchanegeability: Matched for mv/v and shunt calibration +0.3% FS
Nonlinearity: +0.2% FS
Excitation Recommended: 10V DC or AC RMS
Bridge Resistance: 350 ohms
Usable Temperature Range: 41-122 degrees F
Mating Connector: Bendix PTO6A-10-65(SR)
Safe Overload: 125% of rated ouput
