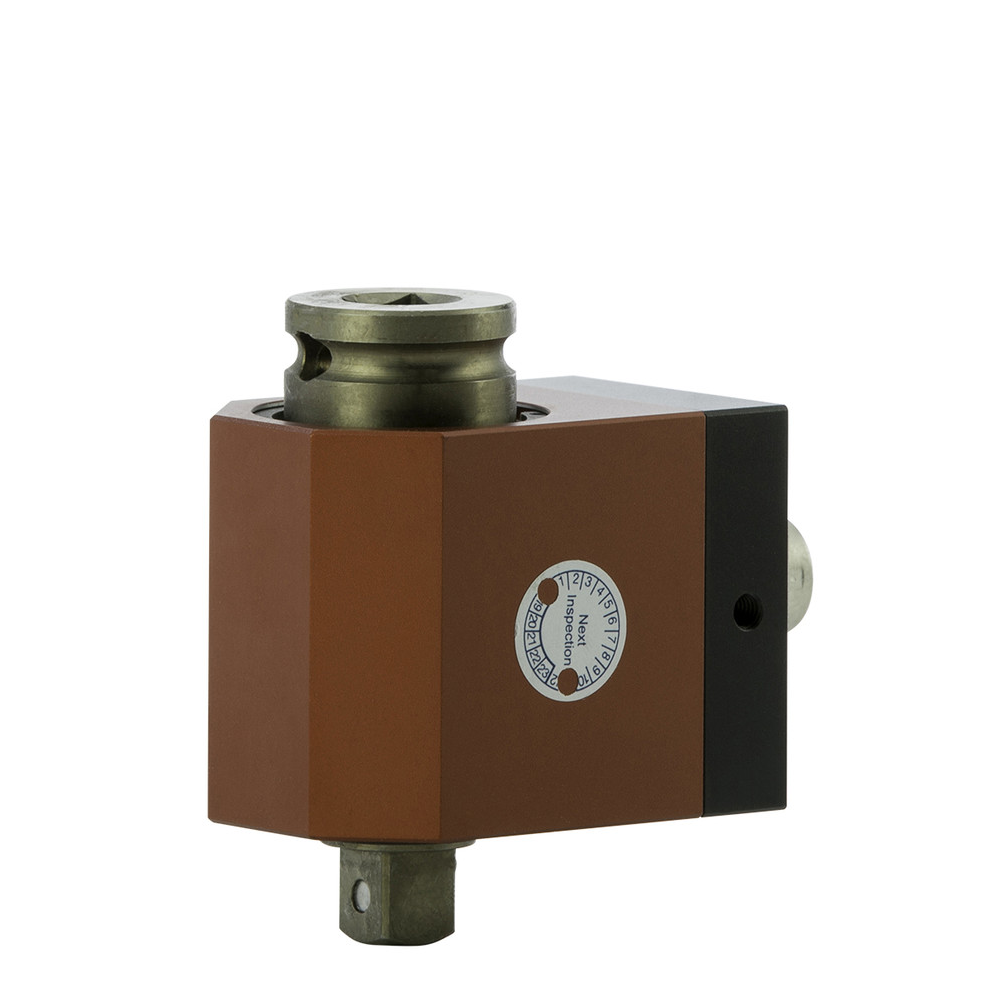

Input driver type: 3/8 Female/Square
Output driver type: 3/8 Male/Square
Torque ranges: 5 - 50 lbf.ft / 6.8 - 67.8 N.m
Output at rated capacity: </= 6 Nm[53 lbf.in] rated torque 1 mV/V > 6 Nm[53 lbf.in] rated torque 2 mV/V
Interchangeability: Matched for mv/v and Shunt Calibration + 0.3% FS
Nonlinearity: +0.2% FS
Excitation recommended: 12V DC or AC RMS
Bridge resistance: 350 Ohms
Usable temperature range: 41 - 122°F
Mating connector: Bendix PT06A-12
Safe overload: 125% of rated output
Features:
Ability to measure the rotation angle of a fastener. Joint rate & breakaway torque can be measured too.
Angle output: 2-channel quadrature, 360 pulses per rotation.
Bi-directional.
For use with most power tools and rotational measurement applications.
Features ARC II technology, an instant auto-recognition system of the RTSX-A connected to the PTT and LTT
Accuracy ± .25% of full scale
