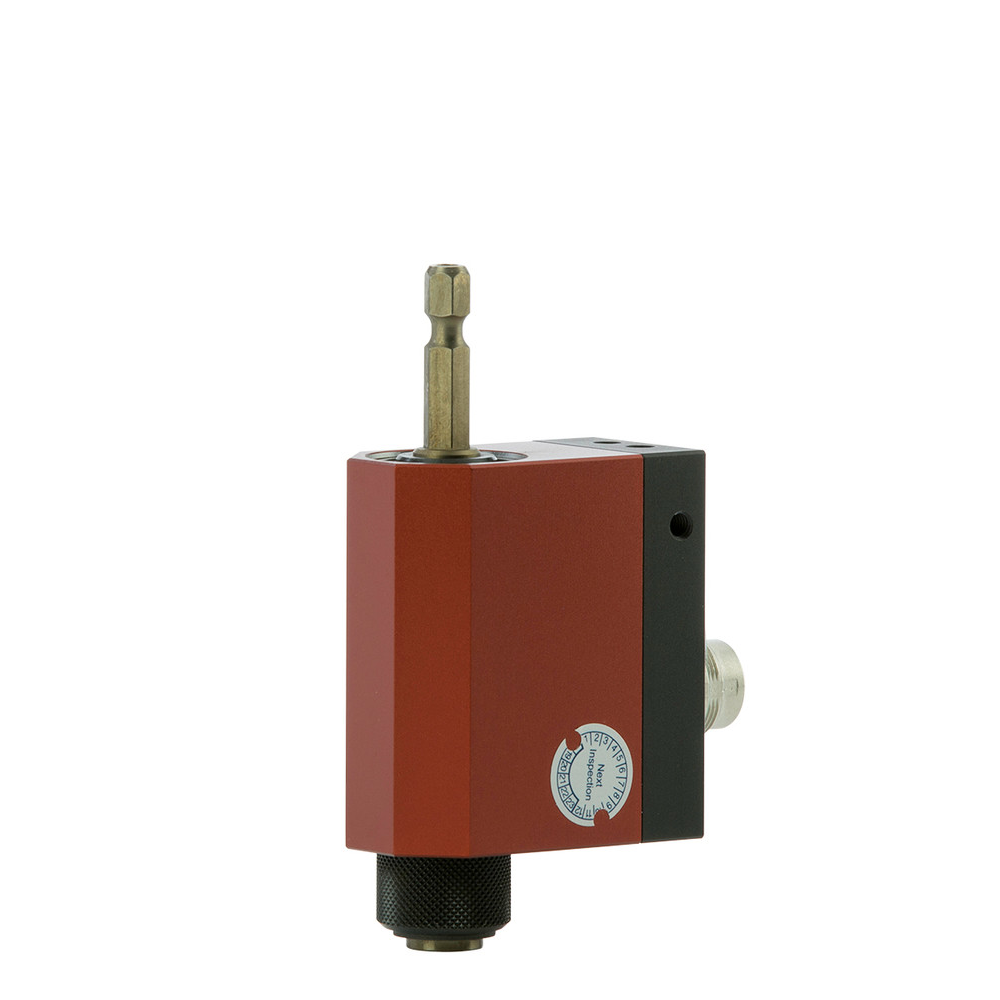

Mountz RTSX10i-HA Rotary Torque & Angle Sensor (1 - 10 lbf.in)

Input driver type: 1/4 Male/Hex

Output driver type: 1/4 Female/Hex

Torque ranges: 1 - 10 lbf.in / 11.3 - 113 cN.m

Output at rated capacity: </= 6 Nm[53 lbf.in] rated torque 1 mV/V > 6 Nm[53 lbf.in] rated torque 2 mV/V

Interchangeability: Matched for mv/v and Shunt Calibration + 0.3% FS

Nonlinearity: +0.2% FS

Excitation recommended: 12V DC or AC RMS

Bridge resistance: 350 Ohms

Usable temperature range: 41 - 122°F

Mating connector: Bendix PT06A-12

Safe overload: 125% of rated output

Features:

Ability to measure the rotation angle of a fastener. Joint rate & breakaway torque can be measured too.

Angle output: 2-channel quadrature, 360 pulses per rotation.

Bi-directional.

For use with most power tools and rotational measurement applications.

Features ARC II technology, an instant auto-recognition system of the RTSX-A connected to the PTT and LTT

Accuracy ± .25% of full scale
