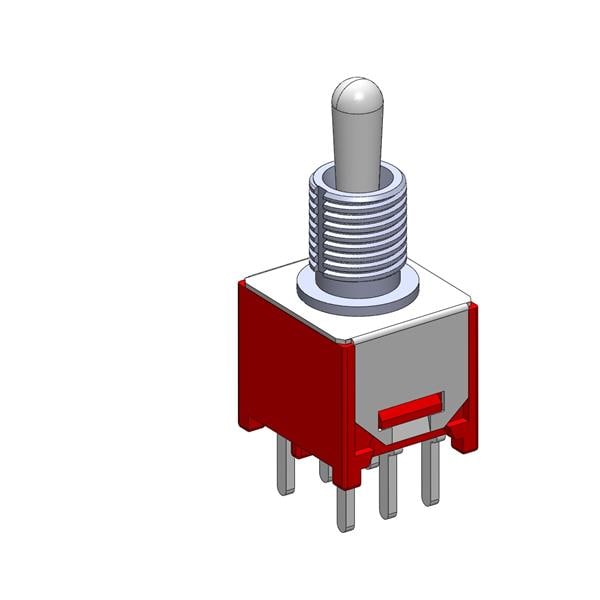

Mountain Switch 108-2MD3T2B3M2QE-EVX Toggle Switch DPDT ON-OFF-ON PC
Life: 30000 Cycle
Actuator: Bat
Illuminated: Non-Illuminated
Bushing Size: 10-48
Contact Form: DPDT
Mounting Type: Bushing
Terminal Seal: Sealed
Actuator Style: Bat
Current Rating: 1 A, 3 A
Mounting Style: Panel Mount, PCB Mount
Actuator Length: 5.33 mm
Contact Plating: Silver
Switch Function: ON - OFF - ON
Contact Material: Silver
Housing Material: Stainless Steel
Actuator Material: Brass
Termination Style: Solder Pin
Voltage Rating AC: 120 VAC, 250 VAC
Voltage Rating DC: 28 VDC
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 30 C
