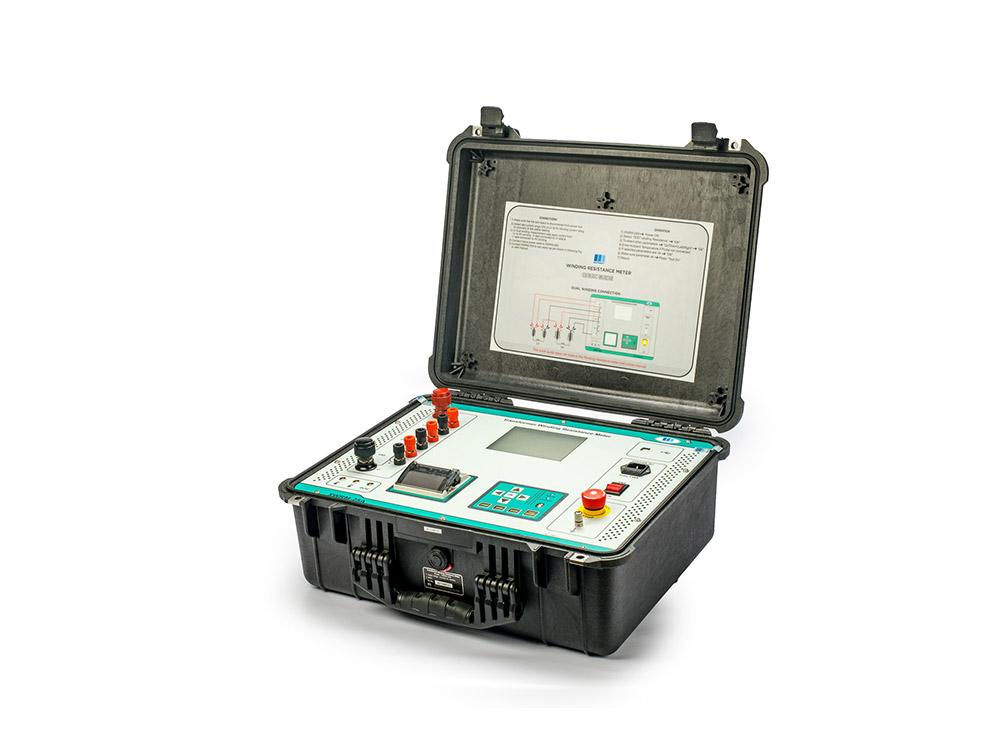

MOTWANE XWRM-25A Transformer Winding Resistance Meter (200uΩ~2000Ω)

Power Supply: 115/230VAC, 50/60 Hz

Test Current:

25A, 10A, 5A, 1A, 100mA & 10mA
Open-Circuit Test Voltage: 60 VDC
Burden: 1500W

Resistance Measurement Range

Accuracy: ±(0.1% of rdg. ± 5counts)

General

Principle: 4 wire measurement
Measurement Channel: 3 resistance & 1 current channel
Temperature Channel: 2 Channel
Temperature Range: 0 – 100 °C
Display: LCD
Indication: LED & veep during test on, & discharge
PC Interface: USB
Internal memory: 2000 test readings
Printer: Inbuilt thermal printer

Safety & Standards

Ingress Protection: IP 54
CE Certification
Safety: Compliant with IEC 61010-1
EMC: Compliant with IEC 61326-1

Environmental

Conditions Operating Temperature: 0°C to 55°C
Storage Temperature: -10°C to 60°C
Humidity: 95% RH, Non condensing

Physical Specifications

Dimensions (L×W×D) mm: 525 x 437 x 213
Weight: 15 kg

Software Details

Type: Windows based analytical software
Data Transfer: Real-time data transfer

Features: Online data acquisition
Graph plotting for heat run test & OLTC dynamic test
Remote operation
Test report generation

Standard Accessories

15 meters measuring test lead set
Mains power cord
Short links – 2Nos.
Earthing lead
User manual
Calibration certificate
Carry case for test leads

Optional Accessories

OLTC probe
PC Software
USB cord
Temperature sensor
Bluetooth application via cloud based Motware application
