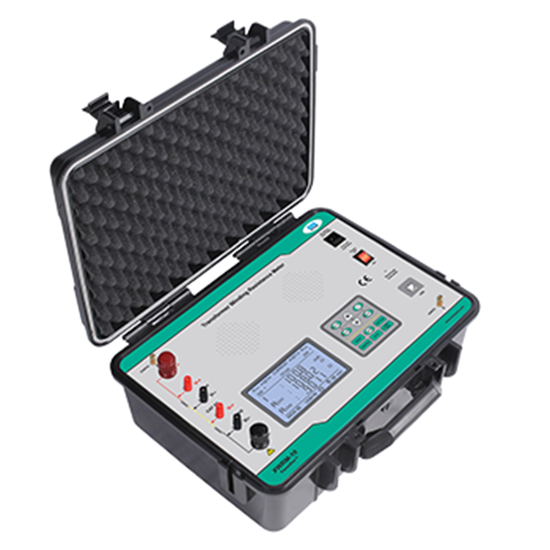

MOTWANE XWRM-10 Transformer Winding Resistance Meter (2mΩ~2000Ω)

Manufacturer: MOTWANE

Model: XWRM-10

Origin: India

Warranty: 12 months

General Specifications

Principle : 4 wire measurement

Mode : Continuous

Display : Large LCD

4½ digit display for resistance

3½digit display fortest current

Keypad : Sealed soft touch keypad

Test ON indication : LED and Beep

Over range indication : Blinking OL display

Technical Specification

Power Supply

Input power : 230V ±10%, 50Hz, Single

phase AC supply

Test Specification

Test Current Injection : 10A, 1A, 100mA &10mA

Test current accuracy : ±10%

Current Flow Alert : LED & Beep

Open-Circuit Test Voltage : 42 VDC

Senven Range: 2mΩ to 2000Ω

Accuracy: ±(0.2% of rdg. + 5 counts)

10A; 2mΩ; 0.1uΩ ; 1.9999mΩ

10A; 1A; 20mΩ; 1uΩ ; 19.999mΩ

10A; 1A; 100mA; 200mΩ; 10uΩ; 199.99mΩ

10A; 1A; 100mA; 10mA; 2Ω; 0.1mΩ; 1.9999Ω

1A; 100mA; 10mA; 20Ω; 1mΩ; 19.999Ω

100mA; 10mA; 200Ω; 10mΩ; 199.99Ω

10mA; 2000Ω; 0.1Ω; 1999.9Ω

Physical Specifications

Dimensions (L x W x H) : 520mm x 425mm x 230mm

Net Weight: Instrument : 11 Kg

Test Cables : 5.4 Kg

Environmental Specifications

Operating Temperature : 0°C to 50°C

Storage Temperature : 0°C to 55°C

Humidity : <90% RH, Non condensing

Temperature Coeff. : 0.05%

Standard Accessories : 15 meter strong cables with Heavy duty alligator clips: 1 Set (6 No’s : I+, I-, Ch1+, Ch1-,Ch2+, Ch2-) ; Mains power cord; 5 meter Short link ; User Manual ; Calibration Sheet ; Carrying Case

Optional Accessories: Software; USB Cord
