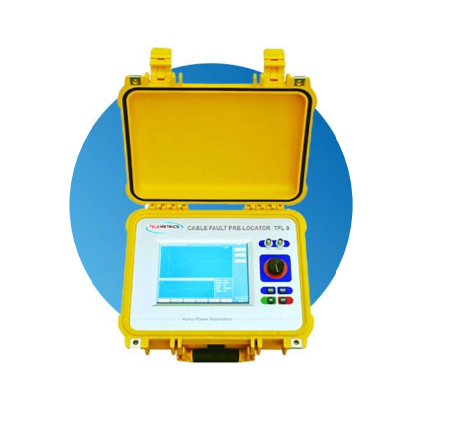

MOTWANE TFL 9 Cable Fault Pre-locator

Maximum measuring range (KM ): 200

Prelocation Modes: TDR, ICM, SIM / MIM, Decay

Resolution: 0.4m

Sampling Rate: 400MHz

Pulse Width: 20ns- 10µs

Pulse Amplitude: 65V

VOP (V) m / µs: 90 - 300

Output Impedance: 5 - 87 Ohms

Input signal gain in dB: 5 - 87 Ohms

Display : TFT - 8 inch - Touch

No of records storage memory: > 100

Communication interface: USB

Control: Touch as well as rotary encoder

Internal battery: Li-ion - 7.4V/6000 mAh

Battery operation fully charged: 8 hrs

Battery charger: 110 - 220V AC - 50Hz , 8.4V/2A DC

Auto shut off feature: Available

Temperature: -10°C ± 50°C

Size in mm: 340 x 295 x 252

Weight in KG: 3

Standard Accessories

Low voltage Impulse (TDR) Testing Cable

Impulse Current Method (ICM) Testing Cable

Re-Chargeable battery charger / Adapter

Software Pen Drive

Carrying Case

Instruction / User Manual

Datasheet
