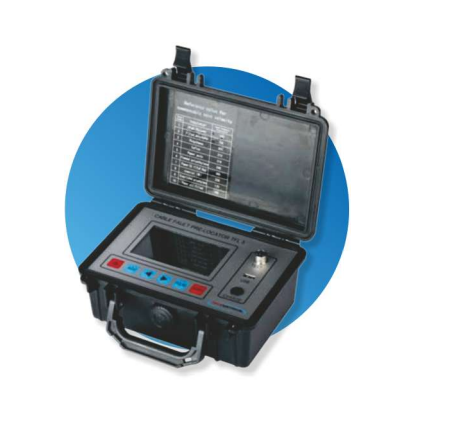

MOTWANE TFL 5 Cable Fault Pre-locator

Fault Distance Range: 16 Km (240m, 480m, 1000m, 2000m, 4000m, 8000m, 16000m)

Measurement Mode: TDR (Time Domain Reflectometer)

Fault Accuracy: 1 Meter

Pulse Width: 40 ns - 10 us

Pulse Waveform: Two polarity pulse

Pulse Amplitude: 0-30 V Adjustment adaptive

VOP Range: 100 - 300

Impedance Matching: Automatic

Gain Adjustment: Automatic and Manual

Testing Accuracy: +1% x Cable length

Measurement Dead Zone: 0 Meter

Auto Measurement Dead Zone: 0 Meter

Output Impedance: 25 - 120 ohms (Adaptive)

Sampling Speed: 100 MHZ

PC Connectivity: USB

Resolution: 1 Meter

Gain Range: 1-99 dB

Display Readout: Color LCD and 480 * 280

Power Supply: 7.4 V Rechargeable Li-on battery

Charging Time: 3 Hours

Operating Time: 8 Hours

Charging Voltage: 230V AC +10%, 50Hz, Single phase.

Storage Temp.: -15℃ to +55℃

Working Temp.: -15℃ to +45℃

Dimension: 212mm(L) x 170mm(W) x 90 (H)mm

Weight: 1.27 Kg Approx

Standard Accessories

Carrying Case

Re-chargeable battery charger / Adapter

Connecting Test Cables

Softrware CD

8 GB Pen Drive

Instruction / User Manual
