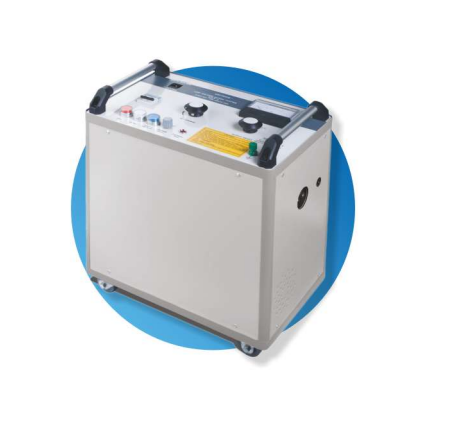

MOTWANE SWT 6DC Low Voltage Surge Wave Tester

Impulse Mode:

Voltage range in kV: 0-3 / 0 - 6

Energy (at each range) in Joules: 1000

Single Impulse: YES

Selectable auto frequency per minute: 15/10

ARM module (Optional): Yes

DC test mode: Yes

Voltage in kV: 0 - 12

Current in mA: 10

Burn Current in mA (Optional) 3kV: 200mA

Burn Current in mA (Optional) 6kV: 100mA

General Parameters:

Input Power Supply: 230V AC ± 10%

Power Frequency: 50Hz or 60Hz ± 5%

Operating temperature: 0°C to +55°C

IP rating: 21

Approximate Weight in KG: 80

Approximate size (L x W x H) in mm:  550 x 630 x 700

Standard Accessories:

30kV High Voltage cable in meter: 5 meter

Mains cable in meter: 5 meter

Earth cable in meter: 5 meter

Rexin cover: Yes
