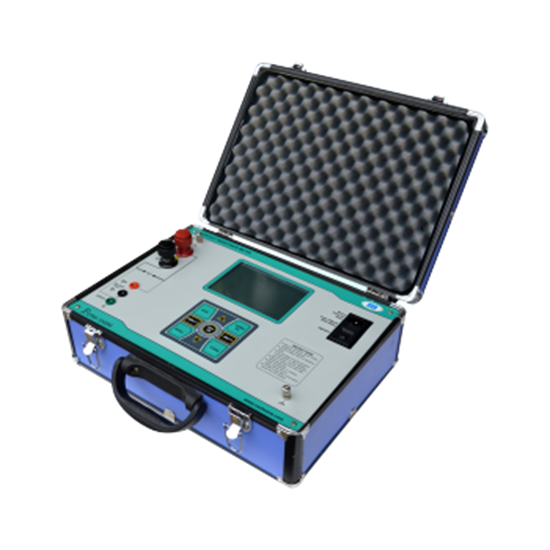

MOTWANE PCRM-100SM Contact Resistance Meter (100Amp DC)

Manufacturer: MOTWANE

Model: PCRM-100SM

Origin: India

Warranty: 12 months

Test Current: 100Amp DC

Range & Resolution: 200uΩ with 0.1uΩ

2000uΩ with 1uΩ

Accuracy: ±2% of reading 1 Digit

( From 10% of the range)

Measurement Priciple: Four wire measurements

Display: 3½ LCD with backlit

Memory: 100 Test

Power Supply: 100V to 250V, 50 Hz ±10Hz

Power Consumption: 35VA

Operating Temperature: 0-50° C

Storage Temperature: 0- 50° C

Humidity: less than 95% RH, non condensing

Dimension( D x W x H): 320 x 435x 188

Weight: 7Kg Approx.

Charging Time: 16 hours

Standard Accessories: 15mtr heavy duty lead set with C Clamp 75mm opening; Master Earthing lead set( 5mtr); Power Cord; User Manual; Calibration Certificate; Spare fuse(250mA/250V slow blow); Carry Case

Optional Accessories: 22mtr heavy duty lead set: C Clamp 50mm jaw size; C Clamp 100mm jaw size; C Clamp 150mm jaw size; heavy-duty crocodile clip 32mm jaw size

15mtr cable( heavy crocodile chip 32 mm opening)
