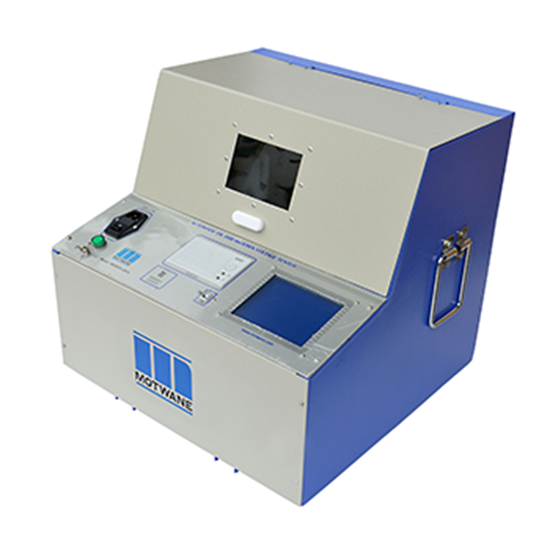

Motwane OTS-A Fully Automatic Transformer Oil Test set

Manufacturer: MOTWANE

Model: OTS-A

Origin: India

Warranty: 12 months

Power supply: 230V, 50Hz ±10%, 1 Phase

Power consumption: 200VA

Output voltage (in KV): 0-100kV (OTS - 100A); 0 - 80kV (OTS - 80A); 0 - 60kV (OTS - 60A)

Voltage Accuracy: ±1% ± 2digits

Voltage Resolution: 0.1kV

Voltage rise rate: 0.5, 1,2,3 & 5kV/sec ( Selectable )

Switch-off time: <10 ms

Ambient temperature measurement: 0 … 99 °C

Temperature resolution: 01°C

Humidity measurement: 0 - 100%

Display: Large LCD display with touchpad

PC Interface: USB

Printer: Inbuilt Thermal Printer

Internal Memory: 100 test results

Environmental condition: 0 C to +55 C , <90% RH, Non condensing

Dimension ( L X W X H ) mm: 465 X 510 X 445

Weight: 48Kg approx

Safety Standards: IEC 61010-1, EMC 61326

Standard Accessories: Oil test vessel with mushroom electrode assembly; Magnetic oil stirrer ; Lifting stick for magnetic stirrer; Go - No - Go gauge Mains cord ; User manual; Calibration Certificate ; Earth lead; Mains cord ; Spanner ; Spare fuses

Optional Accessories: Voltage Calibrator; Oil test vessel with Spherical Electrodes ; Oil test vessel with Cylindrical Electrodes
