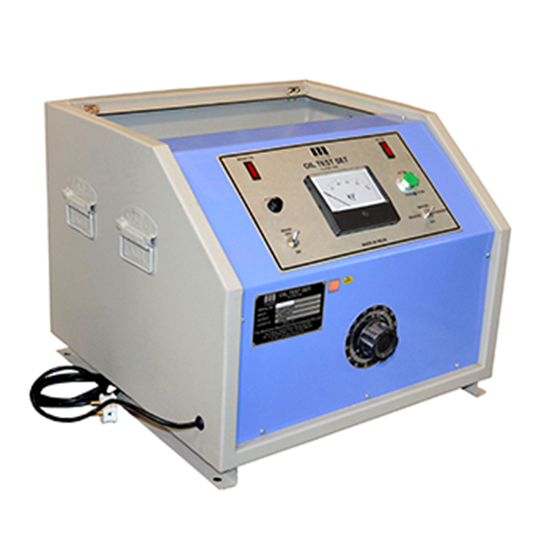

MOTWANE OTS-60A Fully Automatic Transformer Oil Test Set

• Mains supply: 110V/220V 50/60Hz, ±10%

• Power consumption: 200VA

• Output voltage: 0 - 60kV

• Voltage Accuracy: ±1% ± 2digits

• Voltage Resolution: 0.1kV

• Voltage rise rate: 0.5kV to 5kV/sec

• Switch-off time: <1 ms

• Pre-programmed Standards: IEC 60156, IS6792, ASTM D877, ASTM D1816,UNE 21, BS 5730a, BS 148, BS 5874, VDE 0370,NFC 27, CE1344, OCT 6581, SABS 555, AS 1767,STA 8286, IP 295

• Customized Test Standards: 5

• Temperature measurement: 0 - 99°C

• Temperature resolution: 1°C

• PC Interface: USB

• Printer: Inbuilt Thermal Printer

• Internal Memory: 100 test results

• Display: Large LCD colour display

• Protection:

+ Zero start and HT cover open interlock

+ Auto trip and reset

+ Open Ground Protection

+ Overload Protection

• Environmental condition: 00C to +550C , <90% RH, Non condensing

• Safety Standards: IEC61010, IEC61326

• Dimension: 650mm X 320mm X 361mm

• Weight: 39kg

• Standard Accessories:

+ Oil test vessel with a mushroom electrodes

+ Magnetic oil stirrer

+ Retriever for magnetic stirrer

+ Electrode gauge set - 1.0mm / 2.0mm / 2.5mm / 4.0mm

+ Mains cord

+ User manual

+ Calibration Certificate

• Optional Accessories:

+ Voltage Calibrator

+ Oil test vessel with Spherical Electrodes

+ Oil test vessel with Cylindrical Electrodes
