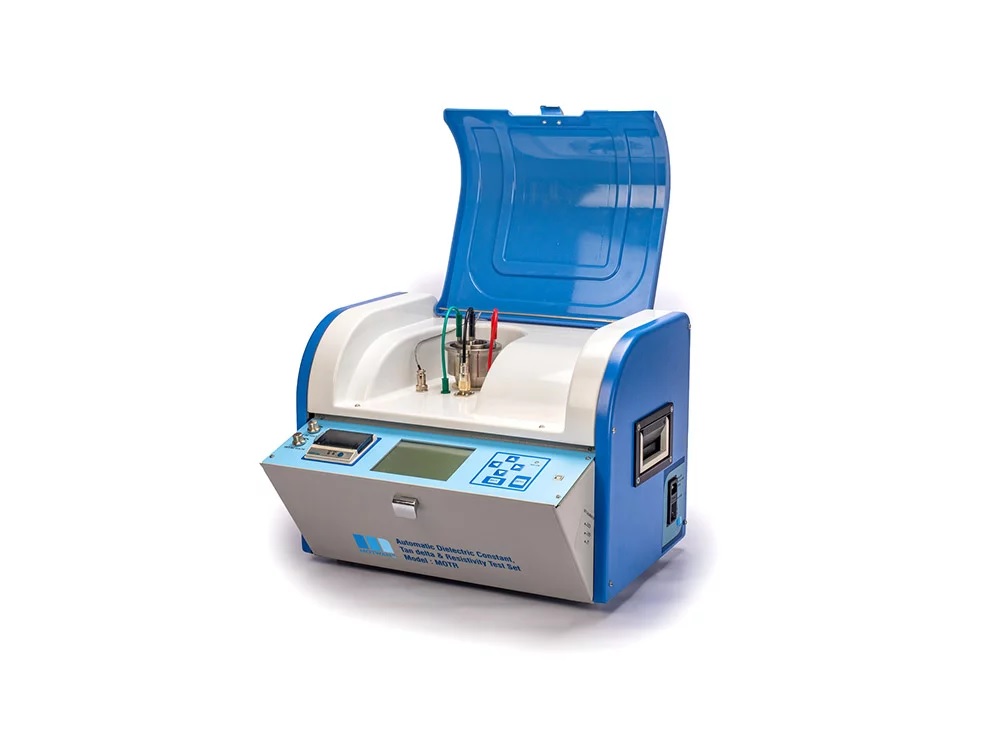

MOTWANE MOTR Motwane Oil Tan Delta & Resistivity Kit (dùng cho dầu)

Parameter/Range/Resolution/Accuracy

AC Test Voltage: 0 – 2400V AC; 1V; ±1% of Reading
Dissipation Factor: 0 – 4.0; 1 X 10e-5; ±1% of Reading ±0.0001 (1 X 10-4)
Capacitance: 0 -1600 pF; 0.01 pF; 0.1% of Reading + 0.1pF
Dielectric Loss: 0 -10.0 watts; 0.001 mili Watts; ±1% of Reading ± 10-5 Watts
Dielectric Constant: 1-20; 0.001; 0.1%
DC Test Voltage: 100 – 1000V DC; 1V; ±1% of Setting
Resistivity: 10^9Ω cm to 10^15Ω cm ;3 Digits;
Resistivity accuracy
± 2% of reading at 10^9 – 10^13 Ω cm
± 5% of reading at 10^13 – 10^14 Ω cm
± 10% of reading above 10^14 Ω cm

Test Cell
Constant : 620 Nominal
Capacitance : 55pF ± 1pF
Insulation : Teflon (PTFE)
Electrode spacing : 2mm
Volume of Oil : 60ml

General
Test Sequences : IEC 60247, VDE 0380, BS
5737, ASTM D924, ASTM
D1169, JIS
C2101:2010,IS602 .
Display : Alphanumeric LCD Display
Printer : Inbuilt Thermal Printer
PC Interface : RS 232 Port
Memory : 250 Test
Power Supply : 110V / 230V, 50/60Hz ±15%
Operating Temperature : -10 to 50 Deg C
Humidity : 90% non condensing
Safety Standards : IEC61010-1 , IEC61326-1
Weight : MOTR - 24Kg
Heating Chamber - 14Kg

Heater
Temperature Range : 20° C - 150° C
Temperature Control : One set point (max110 C)
Heating Element : Induction Type
Sensor : solid state (PT100)

Accessories
Test Lead sets
Oil Test cell with 3 terminals
Standard Calibrator with Tan Delta,
Capacitance&Resistivity values
Transportation case

DATASHEET
