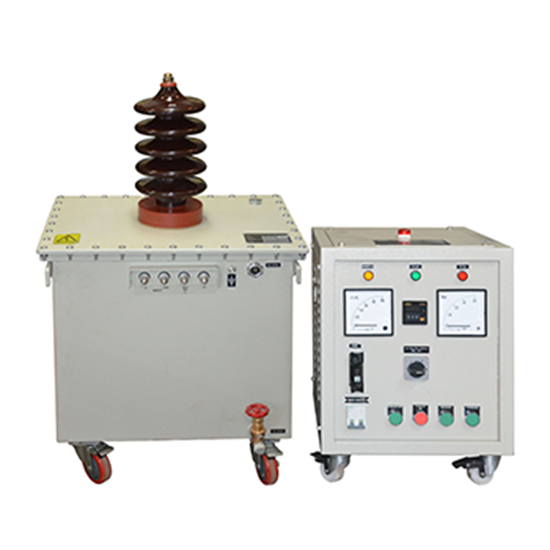

MOTWANE MOT-HVT70 High Voltage Test

Manufacturer: MOTWANE

Model: MOT-HVT70

Origin: India

Warranty: 12 months

Output Voltage: 70kV

Tripping current: Options 1) 50mA or 2) 100mA, Selectable at (25%-50%-100%) of full range

Burden 50mA range : 3.5kVA

Burden 100mA range : 7kVA

Type of Voltage: AC , DC , AC-DC

Display(V/I): Analog meter

Voltage : 0-70kV ; ±2% of reading; 2 kV

Current: ±2% of reading; 2 mA

Mains supply: 230 Vac 50Hz ±10%, 1 Phas

Duty cycle: 15 min On, 10min Off

Timer: 0-999 seconds of FS; ±0.05%

Cooling Type: Oil cooled

Indication: Bright LED for Power ON & Test ON

Operating temp: 0-55°C ,5-90% RH Non Condensing

Standard Accessories: Interconnecting cable; Grounding cable; Instruction manual; Warranty certificate; Calibration certificatel; Mains Cord; HT Cable; Spare fuse

Optional Accessories: Discharge Rod
