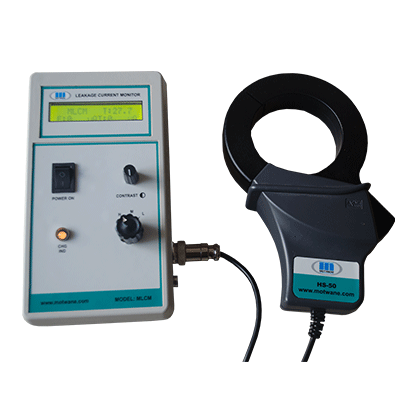

MOTWANE MLCM Leakage Current Monitoring

Manufacturer: MOTWANE

Model: MLCM

Origin: India

Warranty: 12 months

Total Current : 1µA – 30mA; 1µA; ±5% +5 Count

3rd Harmonic Resistive; 1µA – 30mA; 1µA; ±5% +5 Count

Method : B1 as per IEC60099-5

Display : LCD

PC Interface : USB/ Bluetooth from Mobile

App : Android app for data transfer / trending

Compliance : EMI / EMC as per relevant IEC Standards

Power Supply : Rechargeable Li-Ion 9V Battery

IP Rating : IP54

Operating Temperature : -10°C to 50°C

Storage Temperature : -20°C to 70°C

Humidity : Max. 90% Non condensing

Dimension : 95x175x40 mm

Weight : 1.5 Kg

Standard Accessories: MLCM Unit; Test lead with clamp; Mobile (Android) with charger; Battery Charger - 9V; Cable for data transfer; Spare Battery - 9V; Instruction Manual
