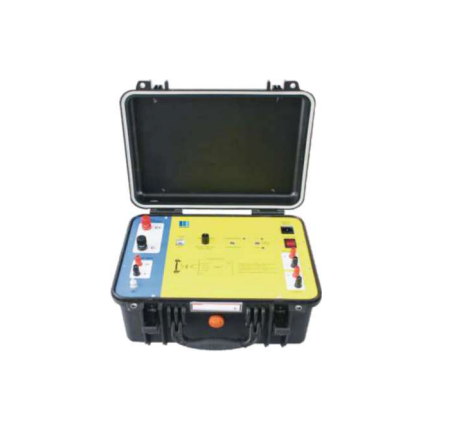

MOTWANE MDCR-M Portable Dynamic Contact Resistance Meter

Resistance range: 8000μ , 4000μ , 2000μ full-scale

Resolution: 32, 16, 8 micro ohm

Accuracy: Value + 2 % + Resolution

Current: 100 A DC full-scale, for up to 1 sec

Output: 0 to 5 V DC

Software: MDCRM software for on screen analysis of test results

Power: 230 V AC + 5%, 50 Hz + 10%

Dimensions: 430mm(L) X 435mm(W) X 188 mm(H)

Weight: 10 Kg Approx.

HS Code: 90318000

Test leads set for

Connection between MDCRM to Breaker / GIS – 15 meter

Connection between MDCRM to MCBOA - 5 meter

Accessories:

Contact Timing Cable, 15m: 3 Nos

Breaker Control Cable, 7m: 1 No.

Master Earthing Cable 7m: 1 No.

Mains cord, 3m: 1 Nos

Spare Fuses: 1 Set

Soft Carrying Case For Test Leads: 1 No.

PC Downloading & Analysis Software on CD: 1 No

Operation cum Instruction Manual: 1 Set
