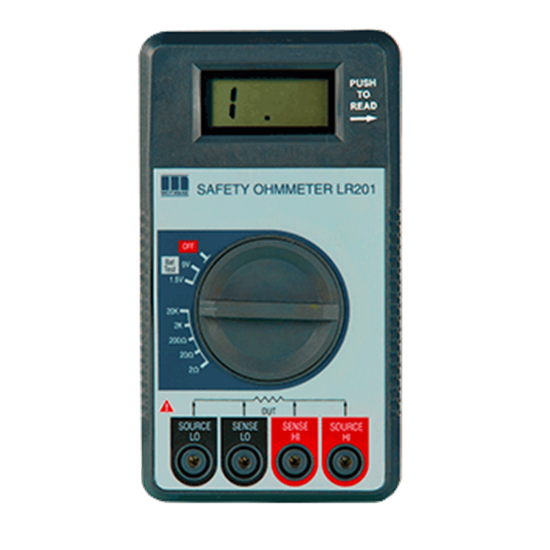

Motwane LR 201 Safety Ohm Meter (2Ω~19.99kΩ)

Manufacturer: MOTWANE

Model:LR 201

Origin: India

Warranty: 12 months

Environment: Operating Temperature: 0°C to 55°C

Storage Temperature: -20°C to 70°C

Humidity: Less than 90% RH

Overrange: DIsplay show with other digits blank

Dimensions: (W x H x D) 100 x 180 x 54mm( approx.)

Weight: Approx. 0.5Kg

Electrical Specification

At 25°C ± 3°C, 55% RH ± 10%

Temp.coeddicient: 200ppmm/°C

2Ω, 1.999Ω; 10mA;± 0.5% ±4

20Ω, 19.99Ω; 1mA;± 0.5% ±4

200Ω, 199.9Ω; 0.1mA;± 0.5% ±4

2KΩ, 1.999KΩ; 0.01mA;± 0.5% ±4

20KΩ, 19.99KΩ; 0.01mA;± 0.5% ±4

STANDARD ACCESSORIES: Test lead with GP Kelvin clip; Instruction Manual; Calibration Report

OPTIONAL ACCESSORY: Test Lead with GP crocodile clip
