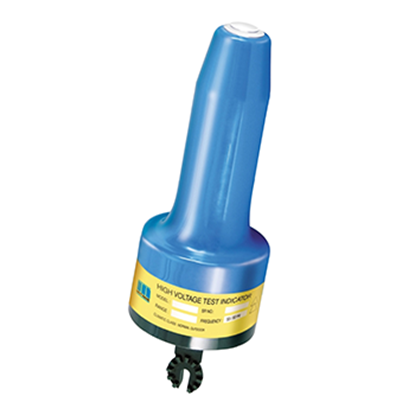

MOTWANE HV-50P High Voltage Detector (230V~33 KV)

Manufacturer: MOTWANE

Model: HV-50P

Origin: India

Warranty: 12 months

High Voltage Indication: 230V to 33 KV, 50 Hz AC( for HV 50P)

Insulation Resistance: Greater than 100M Ohms by 1KV I.R Tester

Dielectric Strength: 220KV AC, 50 Hz of complete assembly

Drop Test: The Voltage Detector is dropped from horizontal and vertical positions from a height of 1m on to a test surface of concrete

Current Consumption: 30mA maximum

Battery low: 7.2 V nominal

Battery: 9V/ battery type 6F22 or equivalent

Visual Indication: High Bright LEDs flashing

Audible Indication: Buzzer beeps loudly

Insulated Stick: Fibre Glass; length 1.2m or 3m; 2kg

Temperature Range: 5°C to 50°C

Humidity: <85% RH non condensing

Storage Temperature: 10°C to 60°C, < 85% RH condensing range
