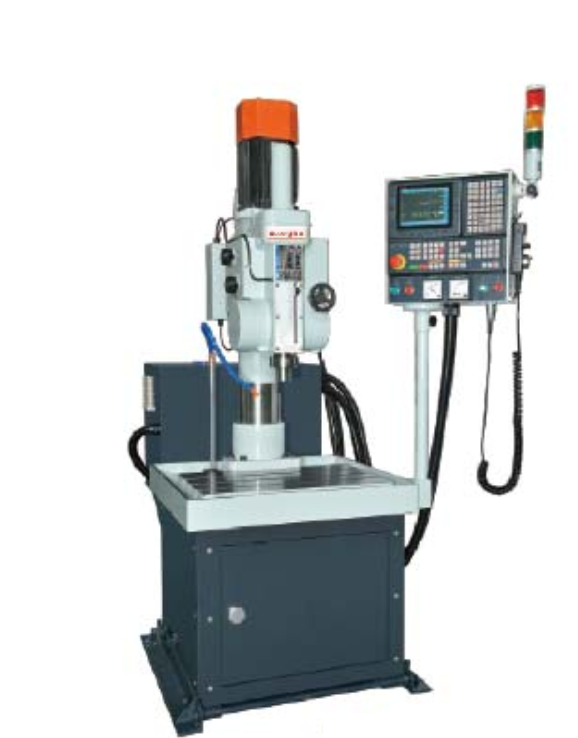

Morgon MD-800S CNC Drill Machine - Upright Type (25/30 mm)

Drilling / Tapping capacity:

- Mild steel: 25 mm / M20

- Cast iron: 30 mm / M24

Boring capacity:

- Mild steel: 80 mm

- Cast iron: 100 mm

Drilling depth: 200 mm

Cutting feedrate: 10~3000 mm/min

Spindle taper: MT#4

Spindle motor: AC servo motor 3.0 kw

Table size: 800 x 800 mm

Spindle nose to table surface top: 270~640 mm

Net weight: 1000 kgs

Datasheet
