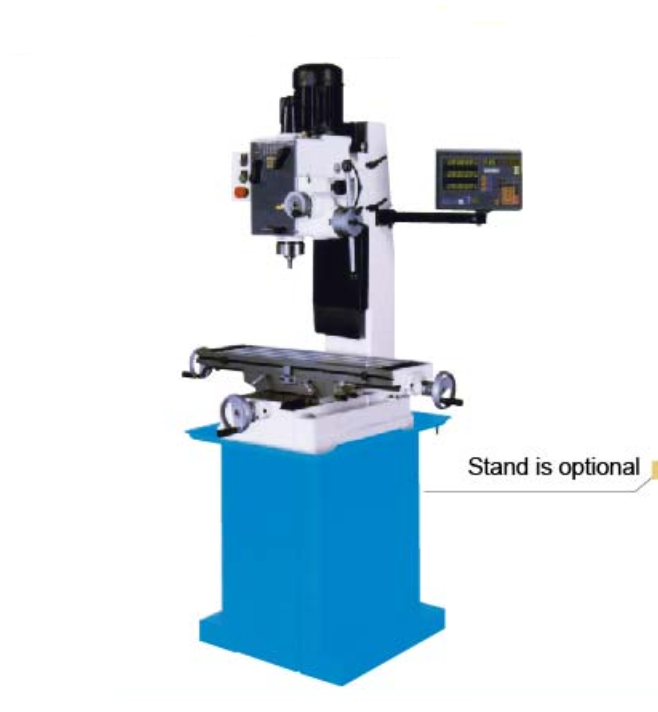

Morgon MD-45N2F+DRO Mill/ Drill Gear Head Type Machine (40/100/20 mm)
ManufacturerMorgon (View more products from this manufacturer)
ModelMD-45N2F+DRO
OriginTaiwan
Warranty12 months
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Drilling /face mill / end mill cap. ( steel ): 40/ 100/ 20 mm
Tapping cap. ( optional ): 20 mm
Longitudinal travel: 520 mm
Cross travel: 210 mm
Spindle stroke: 130 mm
Column diameter: -
Table size: 820 x 240 mm
T-slot ( width x pitch ): 16 x 26 mm
Spindle speed: 65~1550 rpm (6 steps)
Spindle speed ( optional ): 65~3100 rpm (12 steps)
Spindle taper: MT#3 or R8
Spindle motor: 1 HP : 3Ø / 1.5 HP: 1Ø
Net weight: 330 kgs
Datasheet
