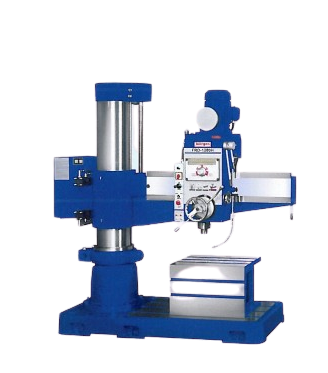

Morgon FRD-750S Radial Drilling Machine (38/50 mm)

Drilling cap. - steel / cast iron: 38 / 50 mm

Tapping cap. - steel / cast iron: M25/ M32

Boring cap. - steel / cast iron: 75 / 105 mm

Spindle stroke: 200 mm

Horizontal travel of headstock: 500 mm

Column diameter: Ø210 mm

Base size: 1280 x 640 x 150 mm

Table size: 550 x 405 x 315 mm

Spindle center to column surface: min. 290 mm/max. 765 mm

Spindle nose to base: min. 282 mm/max 1110 mm

Spindle speed: 88 ~ 1500 rpm , (6 steps)

Spindle taper: MT#4

Spindle motor: 2 HP

Net weight: 1100 kgs
