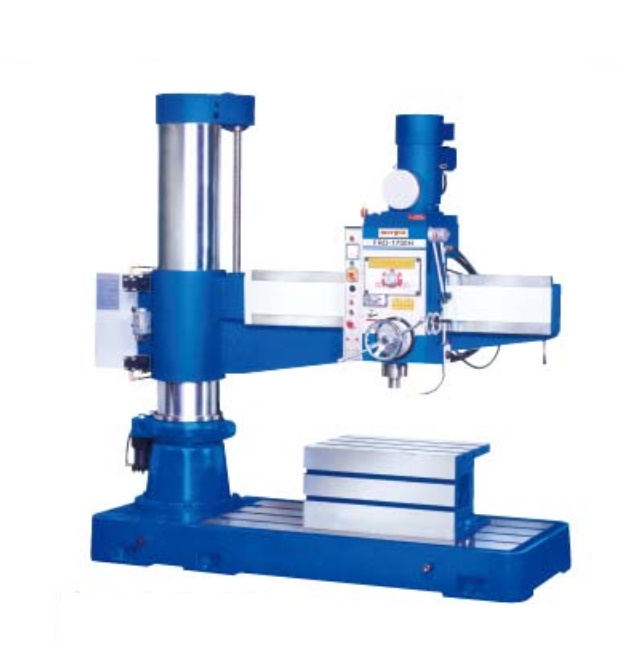

Morgon FRD-1700H Radial Drilling Machine (60/70 mm)
ManufacturerMorgon (View more products from this manufacturer)
ModelFRD-1700H
OriginTaiwan
Warranty12 months
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Drilling cap. - steel / cast iron: 60/70 mm
Tapping cap. - steel / cast iron: M50 / M60
Boring cap. - steel / cast iron: 126/ 180 mm
Spindle stroke: 250 mm
Horizontal travel of headstock: 1300 mm
Column diameter: Ø336 mm
Base size: 2360 x 940 x 230 mm
Table size: 800 x 540 x 400 mm
Spindle center to column surface: min. 360 mm/max. 1650 mm
Spindle nose to base: min. 344 mm/max. 1410 mm
Spindle speed: 30 ~ 1500 rpm, (12 steps)
Spindle taper: MT#5
Spindle motor: 7.5 HP (4P/12P)
Net weight: 3150 kgs
Datasheet
