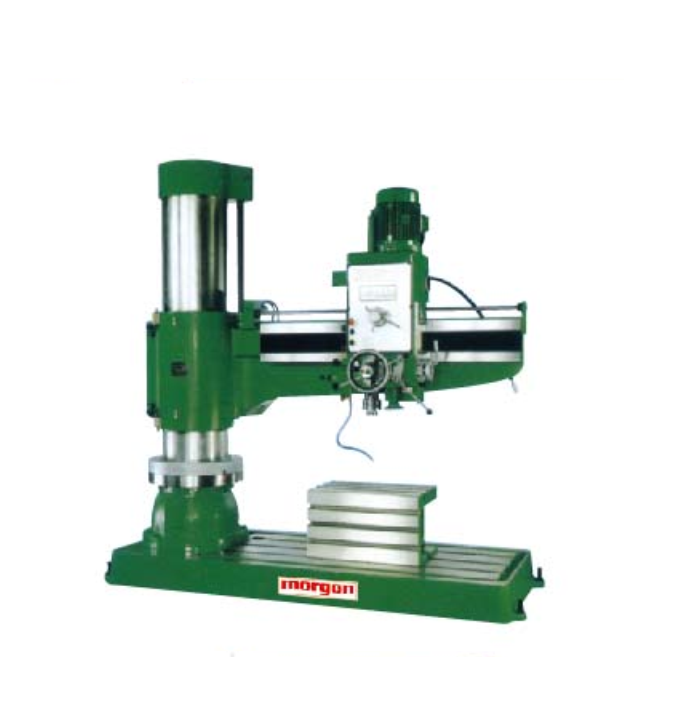

Morgon FRD-1600H Radial Drilling Machine (65/70 mm)
ManufacturerMorgon (View more products from this manufacturer)
ModelFRD-1600H
OriginTaiwan
Warranty12 months
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Drilling cap. - steel / cast iron: 65/70 mm
Tapping cap. - steel / cast iron: 50 / 60 mm
Spindle stroke: 370 mm
Horizontal travel of headstock: 1110 mm
Base size: 2470 x 1030 x 200 mm
Table size: 700 x 500 x 400 mm
Spindle center to column surface: 440 ~ 1550 mm
Spindle nose to base: 380 ~ 1640 mm
Spindle speed (60Hz): 35 ~ 1890 rpm , (12 steps)
Spindle taper: MT#5
Spindle motor: 7-1/2 HP
Net weight: 4250 kgs
