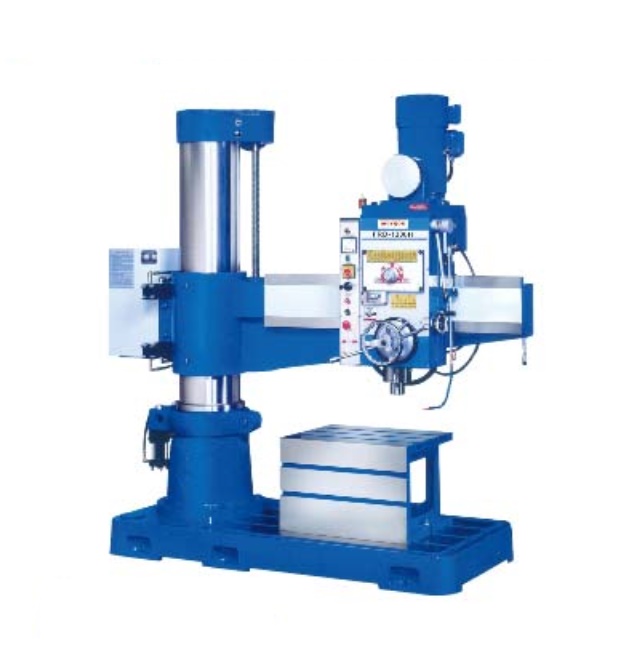

Morgon FRD-1300H Radial Drilling Machine (55/66 mm)
ManufacturerMorgon (View more products from this manufacturer)
ModelFRD-1300H
OriginTaiwan
Warranty12 months
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Drilling cap. - steel / cast iron: 55 / 66 mm
Tapping cap. - steel / cast iron: M50 / M60
Boring cap. - steel / cast iron: 100 / 160 mm
Spindle stroke: 250 mm
Horizontal travel of headstock: 925 mm
Column diameter: Ø300 mm
Base size: 1800 x 800 x 170 mm
Table size: 650 x 500 x 410 mm
Spindle center to column surface: min. 330 mm/max. 1260 mm
Spindle nose to base: min. 290 mm/max. 1210 mm
Spindle speed: 44 ~ 1500 rpm , (12 steps)
Spindle taper: MT#4
Spindle motor: 5 HP (4P/8P)
Net weight: 2150 kgs
Datasheet
