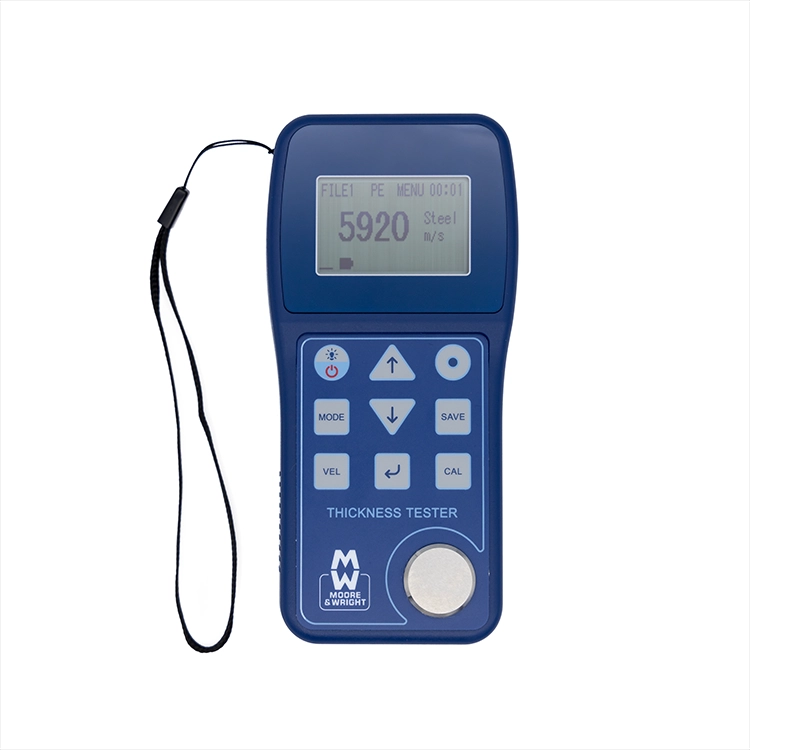

MOORE & WRIGHT MWT-2500 Ultrasonic Thickness Gauge (1-300mm)

Working Principle: Ultrasonic

Be Able to Pass Through The Coatings: IE mode can pass through 500μm coating

Measurement Mode: PE/IE/Test

Measurement Range (mm): 1 - 300 (steel)

Precision (mm): H<10 ±0.05; H≥10 ±(0.05+H/100)

Probe Size: Equipped with diameter 10mm as standard

Resolution (mm): 0.01/0.1 (optional)

Display Screen Size: 2.0'' FSTN,128*64 dot matrix, LED backlight

Measurable Materials: Steel, iron, glass, plastic,aluminium, etc

etc Sound Velocity Range (m/s): 1000 - 9999

Storage Capacity: 500 sets of data

Units of Measurement: Metric / imperial

Language Supported English/Spanish/Chinese Working Temperature (˚C) 0 - 50

Environment Humidity: Relative humidity less than 90%

Power Supply: 2*1.5V AA battery

Dimensions (mm): 150 x 71 x 33

Product Weight (g): 20
