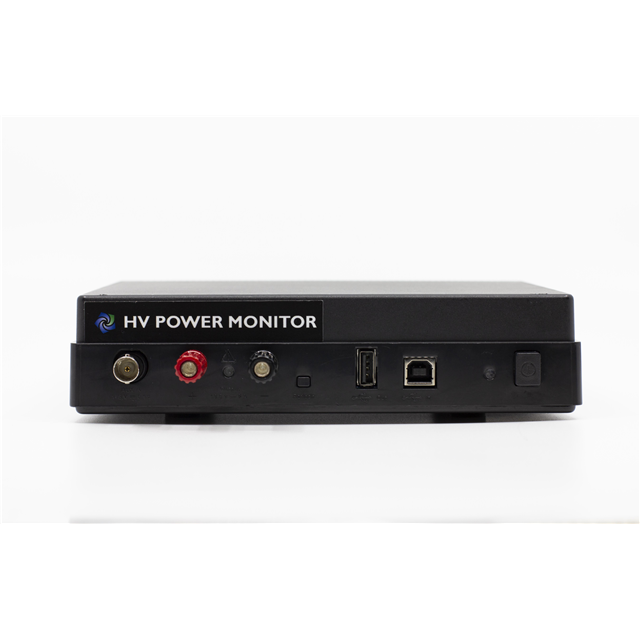

Monsoon Solutions Inc AAA10F HIGH VOLTAGE POWER MONITOR

P/N :AAA10F

Output voltage range0.8 V - 13.5 V

Continuous current6.0 A

Integrator cutoff frequency300 kHz

Sample Rate5KHz

Fine current scale - range60 mA

Fine current scale – resolution1 uA

Fine current scale - accuracy+/- 1% or +/- 50 uA (whichever is greater)

Coarse current scale - range60 mA - 6.0A

Coarse current scale - resolution100 uA

Coarse current scale - accuracy+/- 1% or +/- 1 mA (whichever is greater)

Programmable current limit range8 mA - 15.625 A

Programmable current limit accuracy(0.7) * (current limit)(1.4) * (current limit)

PTC trip limit at 16 V DCINNot applicable14 A

Fan turn on temperature1C40C

Fan turn off temperatureFan turn on setpoint -

Thermal limit shutdown75 C
