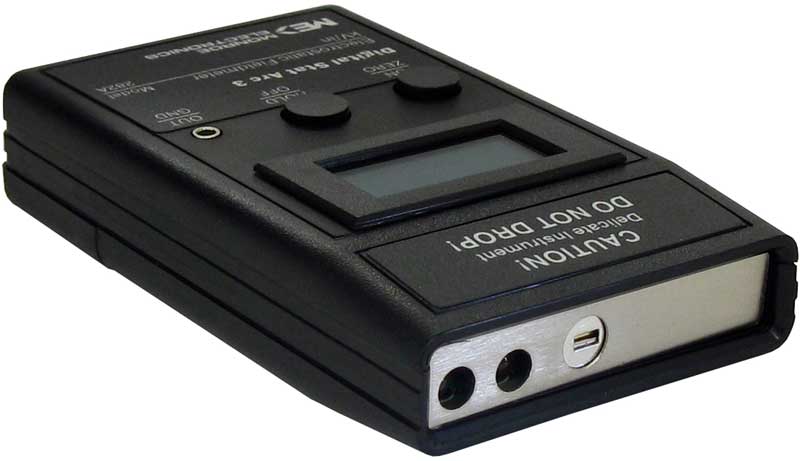

Monroe 282-1 IS Digital Stat Arc 2 IS for Hazardous Locations

Display: LCD

Range: 0 to ±19.99kV at 1 inch

Accuracy: ±5% of reading, + zero offset, ±2lsd

Analog output amplitude: 1V signal denotes 10kV reading at 1 inch for high impedance loads

Response time: Typ. 80 - 100 msec 10 -90%

Jack type: Accepts standart 3/32 inch (2.5mm) monaural phone plug

Battery: 9V NEDA #1604 or equivalent; Life: 40 hours of normal use, with alkaline battery

Dimensions (LxWxH): 2.4 x 4.2 x 0.9 inchs (6.1 x10.7 x2.3 cm)

Weight: 5 oz (0.14kg) with battery

Operating environment: 0-50°C, 0-85%RH (non-condensing)
