Monroe Electronics 292A Surface Resistance Test Kit

Name: Monroe Electronics 292A Surface Resistance Test Kit
Brand: Monroe

ManufacturerMonroe(View more products from this manufacturer)

Model292A

Warranty12 months

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Specifiations:
Range: 1.0 x 10^3 to 1 x 10^12 Ω @ 10V
1.0 x 10^6 to 1 x 10^12 Ω @ 100V
Accuracy: Resistance measurments within +/-10%
(20% for resistance values 1x10^6 and
greater.)
Open Circuit Voltages: 10 and 100 volts ±3%
Electrifiation Period: 15 seconds
Power: Two - Alkaline AA batteries
Meter Weight:.03 kg
Dimensions: (20.6cm x 10.4cm x 3.8cm)

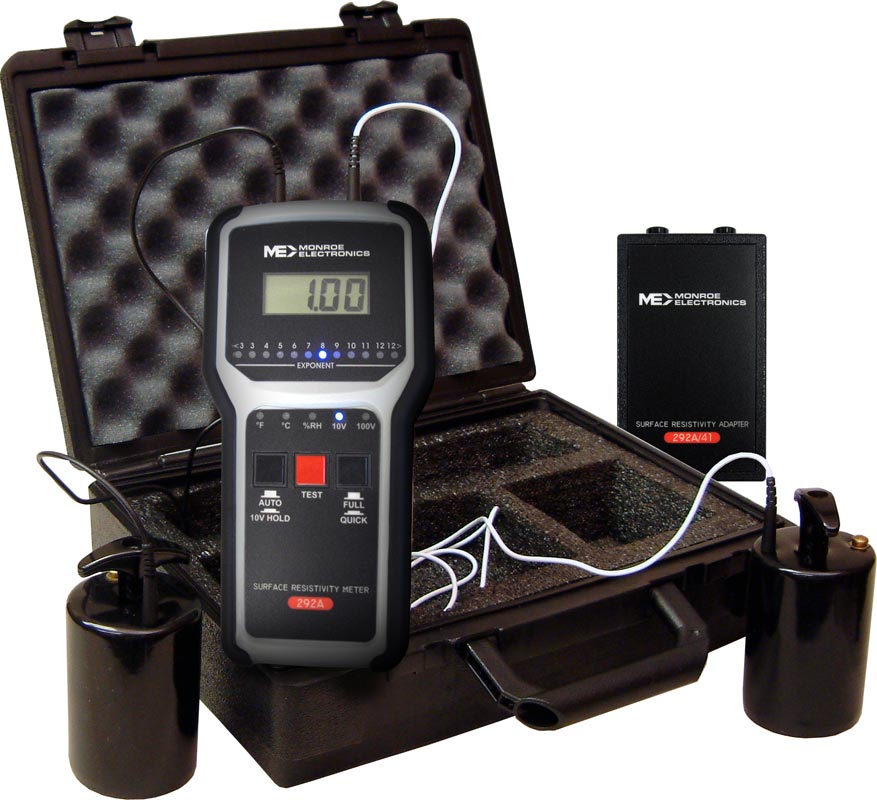

Kit includes:
• Meter
• Protective carrying case
• Test leads with gator clip
• Two NFPA-99 5-pound electrodes
• Two AA Alkaline batteries
• Operator’s Manual

Download Data Sheet

Download Manual


Monroe Model 292A Digital Surface Resistance Test Kit is a portable, versatile, instrument designed to accurately measure resistance between two points (Rtt), surface to ground (Rtg), and surface resistivity in accordance with ANSI/ESD Association standard S-4.1. In addition, the meter measures ambient temperature and relative humidity. The Surface Resistance Meter (included in the kit) is designed to make measurements in accor-dance with specified test methods on:
• Work surfaces – ANSI/ESD STM S4.1 Work surfaces – Resistance Measurements • Floors – ANSI/ESD STM S7.1 – Resistive Characterization of Materials Floor Materials • Footwear – ANSI/ESD STM S9.1 and S9.2 – Footwear- Resistive Characterization • Garments – ANSI/ESD STM 2.1 Garments • Seating – ANSI/ESDESD STM 12.1 Seating – Resistive Measurement • Floor/Footwear – ANSI/ESD STM 97.1 Floor Materials and Footwear Resistance Measurement in Combination with a Person • Workstations – ESD-AVD53.1 ESD Protective Workstations
