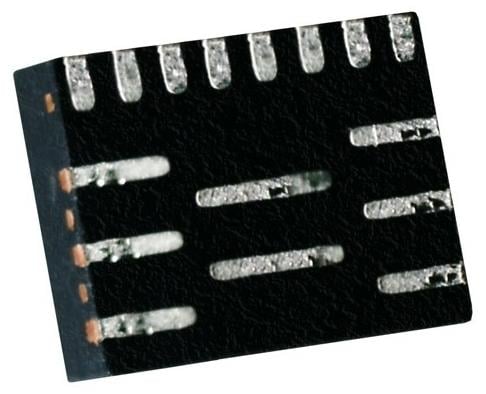

Monolithic Power Systems (MPS) MPQ8616GL-12-P Synchronous Step-Down Converter 6A/12A, 6V Sync Step-down Cnvrtr

Shutdown: Shutdown

Topology: Buck

Unit Weight: 57.100 mg

Input Voltage: 1.5 V to 6 V

Mounting Style: SMD/SMT

Output Current: 12 A

Output Voltage: 3 V to 6 V

Number of Outputs: 1 Output

Quiescent Current: 1.05 mA

Input Voltage - Max: 6 V

Input Voltage - Min: 1.5 V

Switching Frequency: 1 MHz

Supply Voltage - Min: 1.5 V

Operating Supply Current: 1 uA

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
