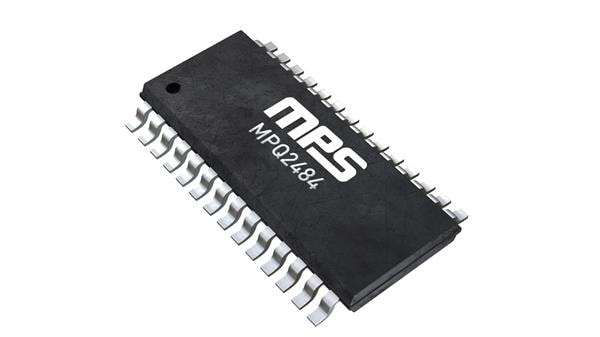

Monolithic Power Systems (MPS) MPQ2484GF-AEC1-P LED Controllers 75V Asynchronous Multi-TopologyLED ControllerAEC-Q100 Qualified

Dimming: Analog, PWM

Features: Cycle-by-Cycle Current Limit, Output Overvoltage Protection, One or More LEDs Short Protection, Fault Flag Output, External Loop Compensation

Topology: Buck-Boost

For Use With: Automotive Exterior LED Lighting

Input Voltage: 4.5 V to 45 V

Qualification: AEC-Q100

Mounting Style: SMD/SMT

Input Voltage - Max: 45 V

Input Voltage - Min: 4.5 V

Operating Frequency: 100 kHz to 2.2 MHz

Supply Current - Max: 45 V

Pd - Power Dissipation: 3.9 W

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 40 C
