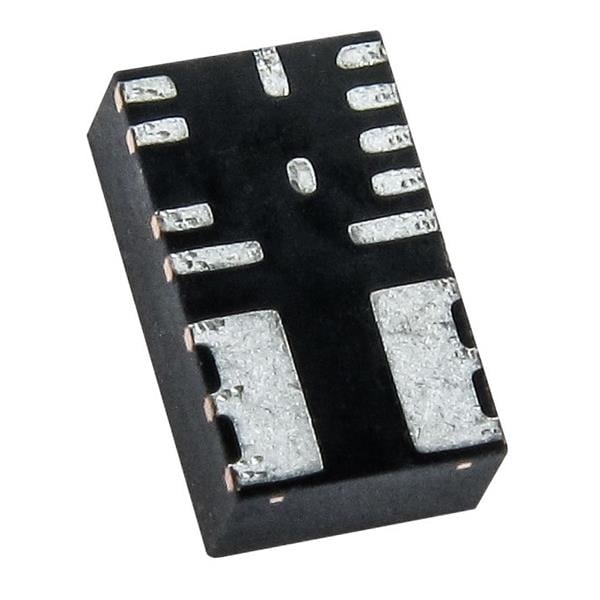

Monolithic Power Systems (MPS) MPM6010GQVE-AEC1-Z Synchronous Step-Down High Efficiency 36V/1.5A Module Synchronous Step-down LED Driver with Wettable Flank

Width: 3.1 mm

Dimming: PWM

Features: PWM Dimming, Short Circuit and Thermal Protection

Topology: Buck

Input Voltage: 4 V to 36 V

Qualification: AEC-Q100

Mounting Style: SMD/SMT

Output Current: 1.5 A

Number of Outputs: 1 Output

Moisture Sensitive: Yes

Number of Channels: 1 Channel

Input Voltage - Max: 36 V

Input Voltage - Min: 4 V

Operating Frequency: 2.2 MHz

Supply Current - Max: 800 uA

Pd - Power Dissipation: 2.7 W

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
