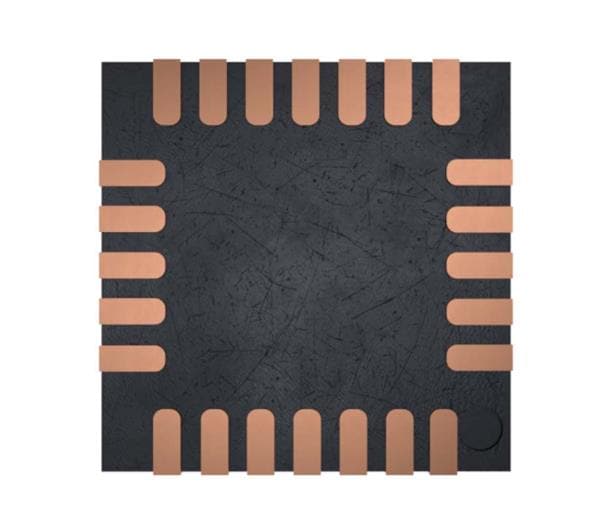

Monolithic Power Systems (MPS) MP3326AGRE-P 16-Channel LED Driver with Digital Interface 16 Channels,80mA/ch, LED Driver With Separated PWM Analog Dimming and I2C Interface

Dimming: Analog, PWM

Features: 10 Addresses Configurable via an External Resistor, 6-Bit Analog Dimming, 12-Bit PWM Dimming, Digital Interface, Fault Indicator, LED Current Configured via an External Resistor, LED Open Protection, LED Short Protection, Over-Temperature Protection, Refresh Signal Output, UVLO Protection

Topology: PWM

For Use With: General Displays, Instruments Clusters, LED Backlighting, LED Indicators, RGB Drivers

Mounting Style: SMD/SMT

Output Current: 80 mA

Number of Outputs: 16 Output

Number of Channels: 16 Channel

Input Voltage - Max: 16 V

Input Voltage - Min: 4.5 V

Operating Frequency: 220 Hz, 250 Hz, 280 Hz, 330 Hz, 1 MHz

Pd - Power Dissipation: 2.97 W

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
