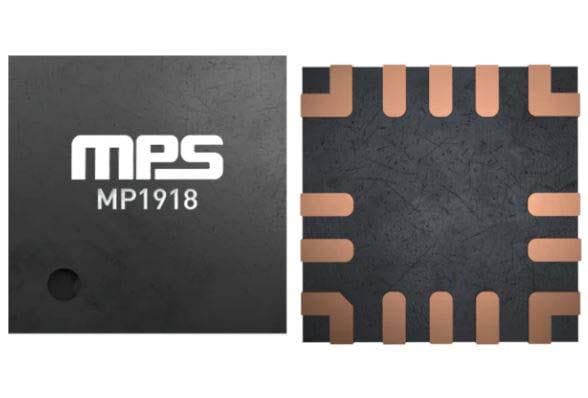

Monolithic Power Systems (MPS) MP1918GQE-P Half-Bridge 100V, High-Frequency, Half-Bridge GaN/MOSFET Driver

Shutdown: Shutdown

Fall Time: 3 ns

Rise Time: 5 ns

Logic Type: TTL

Technology: GaN

Mounting Style: SMD/SMT

Off Time - Max: 6 ns

Output Current: 5 A

Output Voltage: 100 V

Number of Drivers: 2 Driver

Number of Outputs: 1 Output

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 3.7 V

Propagation Delay - Max: 30 ns

Operating Supply Current: 1 mA

Maximum Turn-On Delay Time: 30 ns

Maximum Turn-Off Delay Time: 30 ns

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
