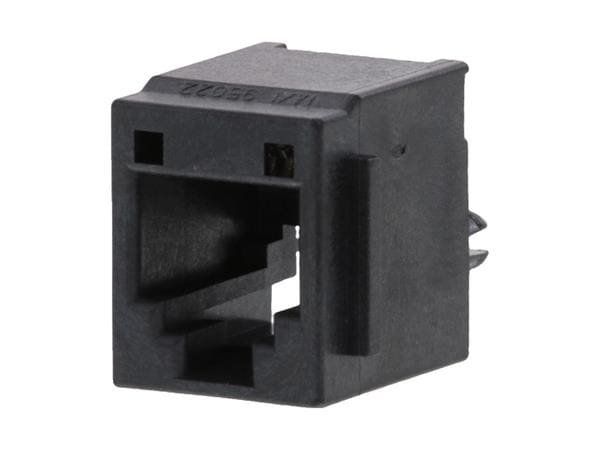

Molex 95522-2667 Modular VERT 6/6 RJ11 HI PRO TOP ENTRY

Color: Black

Pitch: 1.02 mm

Gender: Jack (Female)

Shielding: Unshielded

USOC Codes: RJ11

Application: 10 Base-T

Unit Weight: 2.670 g

Configuration: 1x1

Tab Direction: Top Entry

Current Rating: 1.5 A

Mounting Angle: Vertical

Mounting Style: Through Hole

Voltage Rating: 125 VDC

Contact Plating: Gold

Number of Ports: 1 Port

Contact Material: Tin

Termination Style: Solder

Flammability Rating: UL 94 V-0

Number of Positions: 6 Position

Performance Category: Cat 3

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Number of Positions / Contacts per Port: 8P8C
