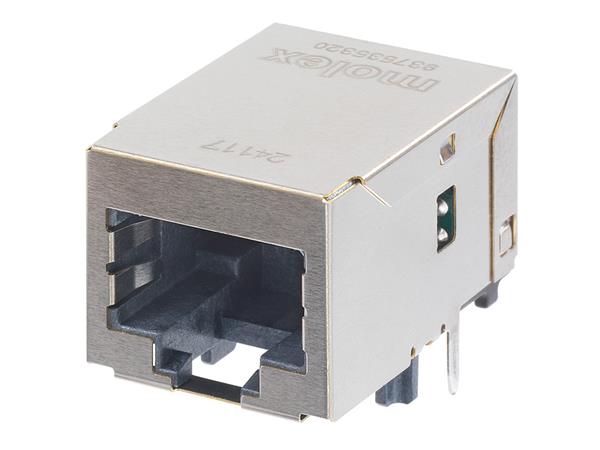

Molex 93753-5320 Magnetic Jack MXMag FstENeT 4CORE W/O TABS FE W/O LED

Color: Black

Gender: Jack (Female)

Shielding: Shielded

USOC Codes: RJ45

Application: 100 Base-T

REACH - SVHC: Details

Configuration: 1x1

Mating Cycles: 2500 Cycle

Tab Direction: Tab Down

Current Rating: 500 mA

Mounting Angle: Right Angle

Mounting Style: Through Hole

Voltage Rating: 125 V

Contact Plating: Gold

Number of Ports: 1 Port

Contact Material: Tin

Termination Style: Solder

Number of Contacts: 8 Contact

Flammability Rating: UL 94 V-0

Number of Positions: 8 Position

Performance Category: Cat 5

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Number of Positions / Contacts per Port: 8P8C
